Emlid’s Reach RX is a high-performance, multi-band RTK rover with a focus on simplicity. No configuration is required to start a job, simply enter the credentials for your corrections network (NTRIP), and you are ready for work. Reach RX fits in a pocket, and you can take it anywhere to survey with centimeter precision.
Box to a FIX in under 60 seconds
Emlid Reach RX uses Bluetooth Low Energy to connect to ReachView 3. You don’t need to spend time learning the advanced settings—just enable the network credentials. If you work with the ReachView 3 app, it uses the Internet connection on your device to access the corrections stream and send it to Reach RX over Bluetooth.
Reach RX is designed to simplify your workflows and eliminates the chance of getting a wrong setup, as it doesn’t require any configuration. Now you can trust collecting and staking out points to your team members even with no in-person training.
Rugged rover with the pocket-sized design
Small and lightweight
Emlid Reach RX has a completely new and incredibly compact design. The pocket-sized rover weighs just 250 grams. You can take Reach RX wherever you go—carry it in a backpack pocket or attach it to your clothing. We also recommend adding a foldable Emlid survey pole to your toolbox. With Reach RX, you can be ready to start a survey in a few seconds.
Powerful battery
The Reach RX battery gives you 16 hours of work on one charge, and even 30 minutes of charging provides four hours of battery life. The receiver comes with a USB Type-C cable and can charge from a power bank, USB wall charger, or a computer USB port.
Rugged enclosure
Reach RX features IP68 ingress protection. The connector is completely sealed and protected from water and dust with a silicone plug. The rover operates in cold winters and hot summers, with temperatures ranging from -20 to +65 °C (-4 to 149 °F).
Lightweight and easy-to-use multi-band RTK GNSS receiver
Designed specifically for work with NTRIP corrections. Comes with a mobile app.
GNSS
GPS/QZSS L1C/A, L2C,GLONASS L1OF, L2OF,BeiDou B1I, B2I,Galileo E1-B/C, E5b
16 hrs
Li-Ion battery, USB Type-C charging
250 g
Compact and lightweight
Communication interface
Bluetooth 4.2

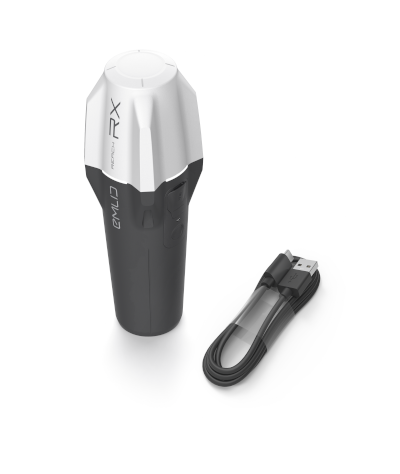

Package includes
– Reach RX – USB Type-C cable
Emlid’s Reach RX Arriving Soon – Preorder yours now
