Availability: In Stock

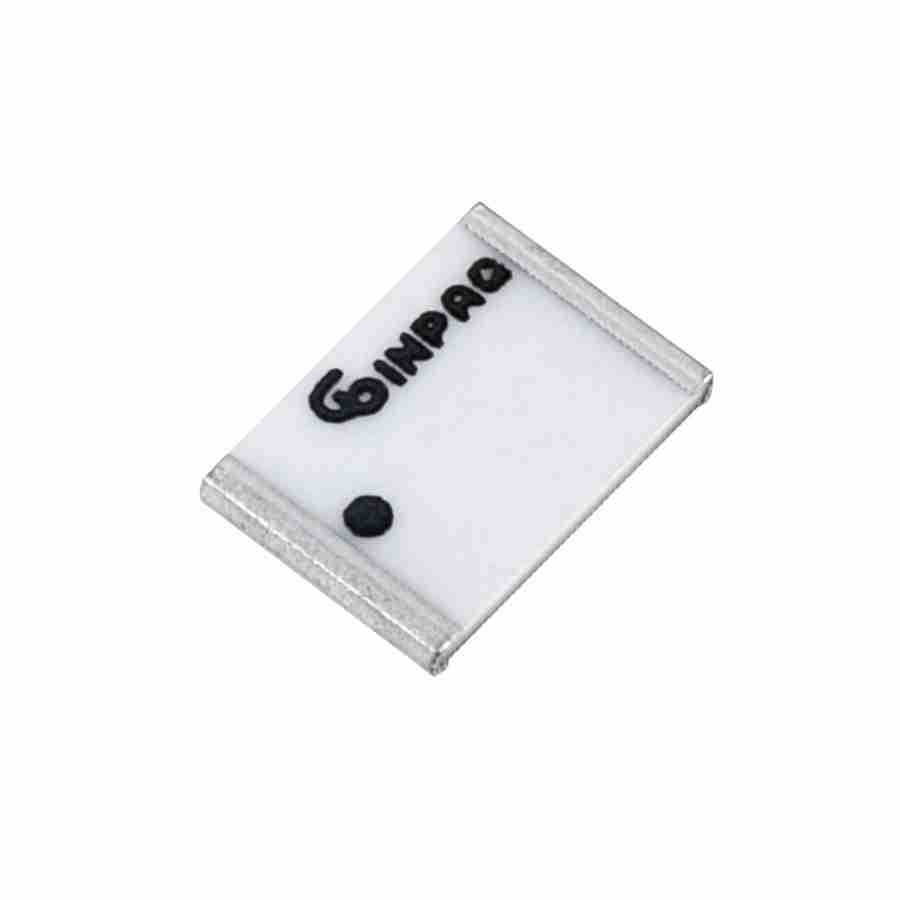

Inpaq ACM3-5036-A1-CC-S Chip Antenna for 2.4GHz and 5GHz ISM Band

Brands:

Chip Antenna for 2.4GHz and 5GHz ISM Band
Dimension 5.2 x 3.7 x 0.7 mm

Product Documents

Description

The ACM3-5036-A1-CC-S 2.4GHz and 5GHz chip antenna is designed for applications such as Smart Buildings, Smart Homes, IoT, Security, Smart Speakers.

The ACM3-5036-A1-CC-S 2.4GHz and 5GHz chip antenna is low profile and covers a very small surface area, (5.2×3.7×0.7mm) making it perfect for use in very small hand held devices.

The ACM3-5036-A1-CC-S 2.4GHz and 5GHz chip antenna is designed to be surface mounted for speed and lower production costs.

The ACM3-5036-A1-CC-S Chip Antenna for 2.4GHz and 5GHz ISM Band Features:
Center Frequency 2450 / 5500 MHz
Frequency Band 2400 ~ 2500 / 5000 ~ 6000 MHz
V.S.W.R. < 2.0 Polarization Linear Impedance 50Ω typ. Peak Gain 3.0 / 3.3 dBi Efficiency 73 / 80 % Dimension 5.2 x 3.7 x 0.7 mm
