Description
Go-IoT WISKA EDGE Carbon Monoxide LoRa Sensor – Battery Powered

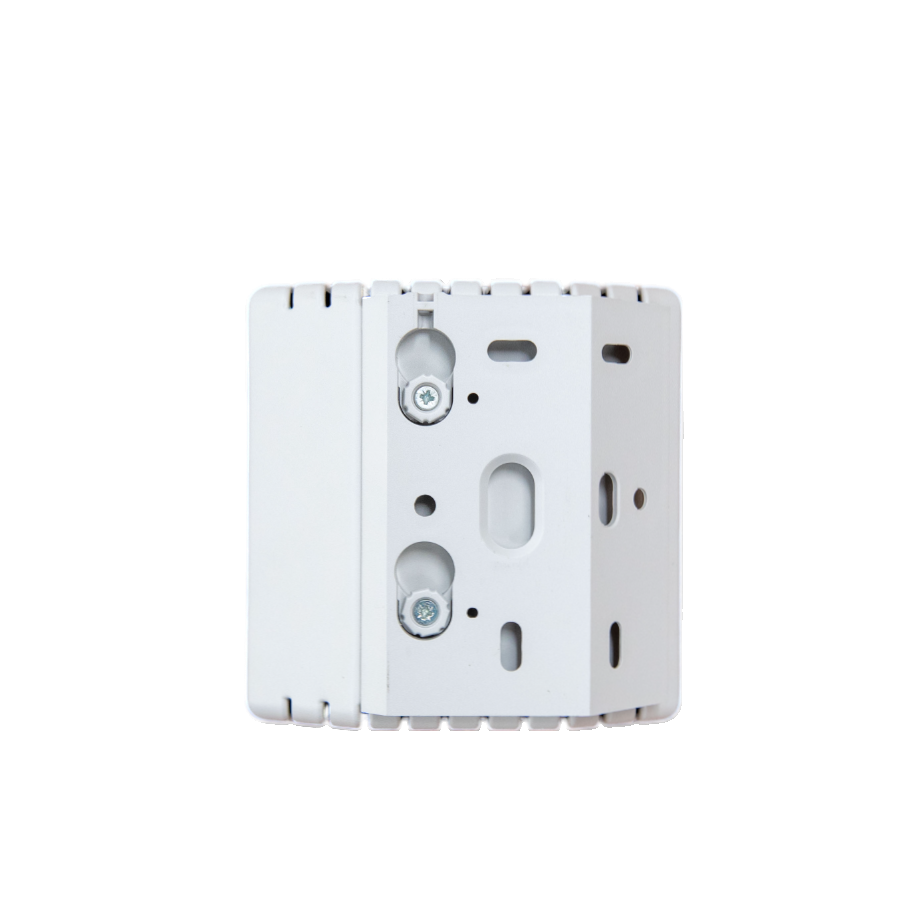

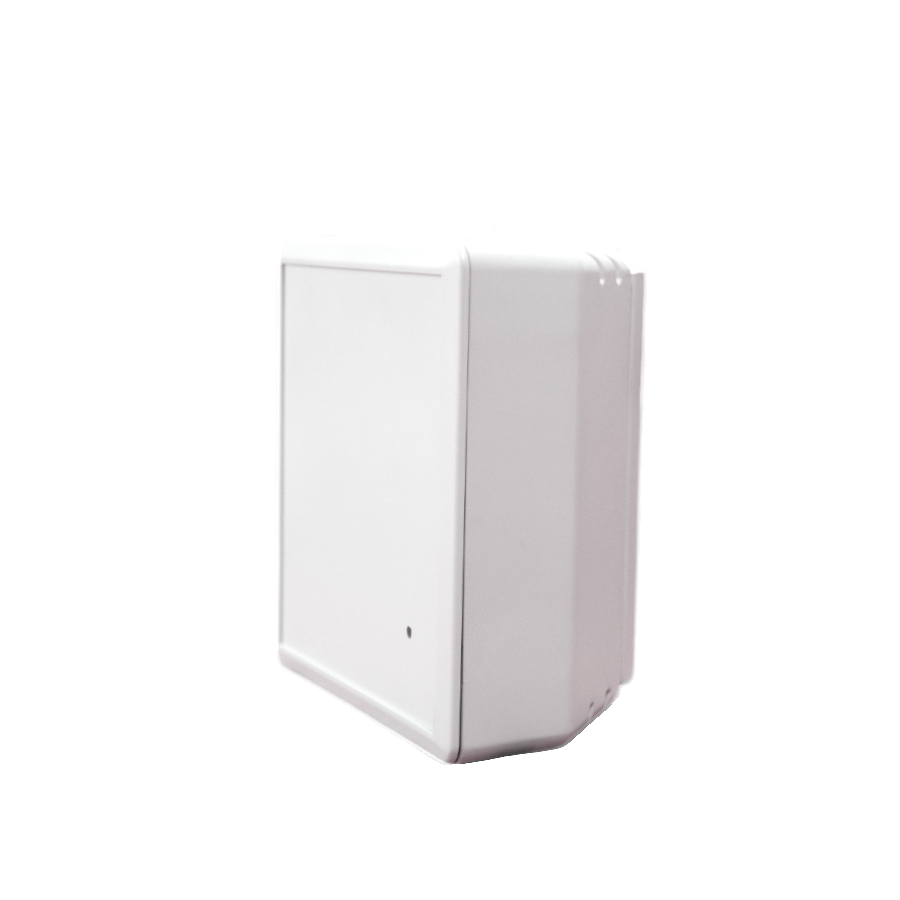

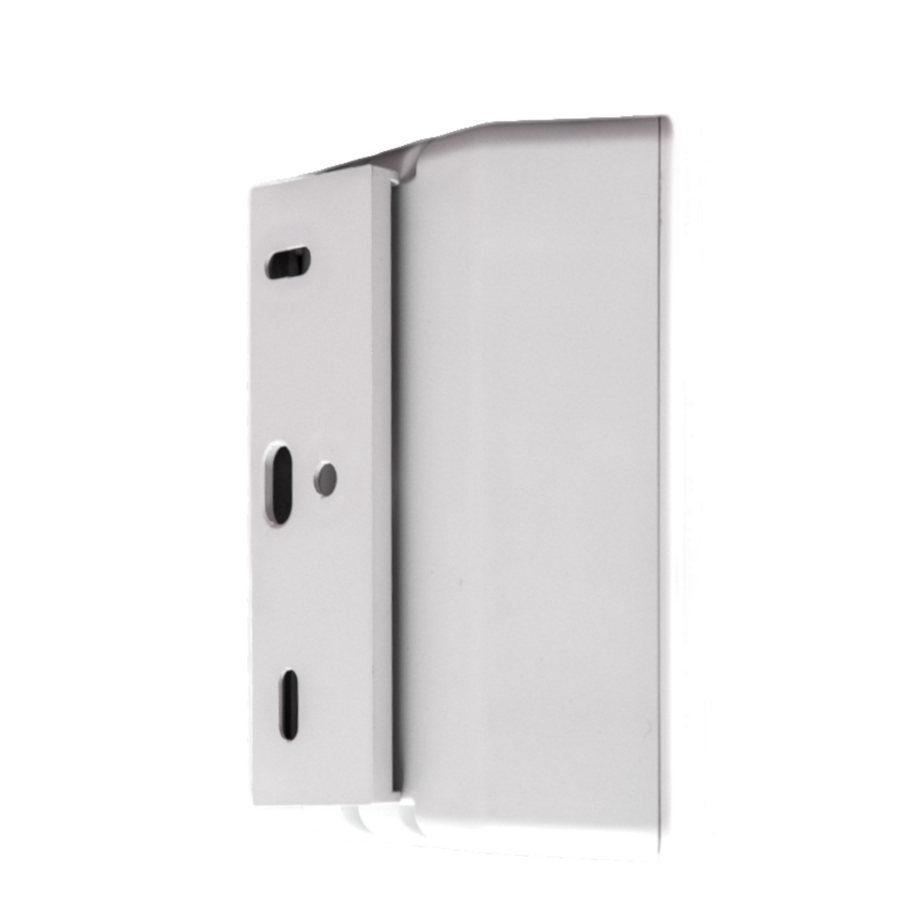

The WISKA EDGE Carbon Monoxide LoRa Sensor incorporates the latest low power technology for monitoring Temperature, Humidity, Air Pressure (option) and Carbon Monoxide (CO) in a single small 100x100x54mm battery-powered ABS housing. Supplied with a convenient wall mounting bracket for quick and easy fitting on walls, in corners or ceilings. The large capacity 19,000mAH battery will provide up to 10 years battery life (dependant on uplink sampling rate – default of which is 15 minutes).
The WISKA supports the LoRaWAN 1.0.3 standard. It is fully configurable via a micro-USB interface (and soon via downlinks if combined with the Go-IoT DINGO range of BACnet LoRaWAN BMS Gateways).
Go-IoT Item Id: WISKA-EDGE-THCO-BAT-WH
Wireless Technology – LoRaWAN® 1.0.3
Wireless Security – LoRaWAN® End-to-End encryption (AES-CTR), Data Integrity Protection (AES-CMAC)
LoRaWAN Device Type – Class A/C (configurable) End-device. (Class B is optional)
Supported LoRaWAN® features – OTAA, ABP, ADR, Adaptive Channel Setup
Supported LoRaWAN® regions EU433, CN470, IN865, EU868 (standard), AU915, US915, KR920, AS923 (Other Regions are optional)
Link Budget – 131 dB (SF5) to 151 dB (SF12)
RF Transmit Power – 14 dB / 22 dB (Region specific)
Antenna – Internal (standard) or External (option)
Battery Type D Size Lithium Battery ER34615 19000mAh Li-SOCL ‚‚ non-rechargeable 3.6 Volt
Battery Life – Up to 10 years (15mins reporting @ SF7)
Other PSU options – please enquire
Sensors:-
Temperature – Resolution: +/- 0.5 °C
Humidity – Resolution: 3 % RH
Air Pressure (option) – Range: 260 – 1260 hPa – Accuracy +/- 1 hPa
CO – Range: 0 – 1000 ppm
Battery Status – Range: 2.4VDC – 5.0VDC

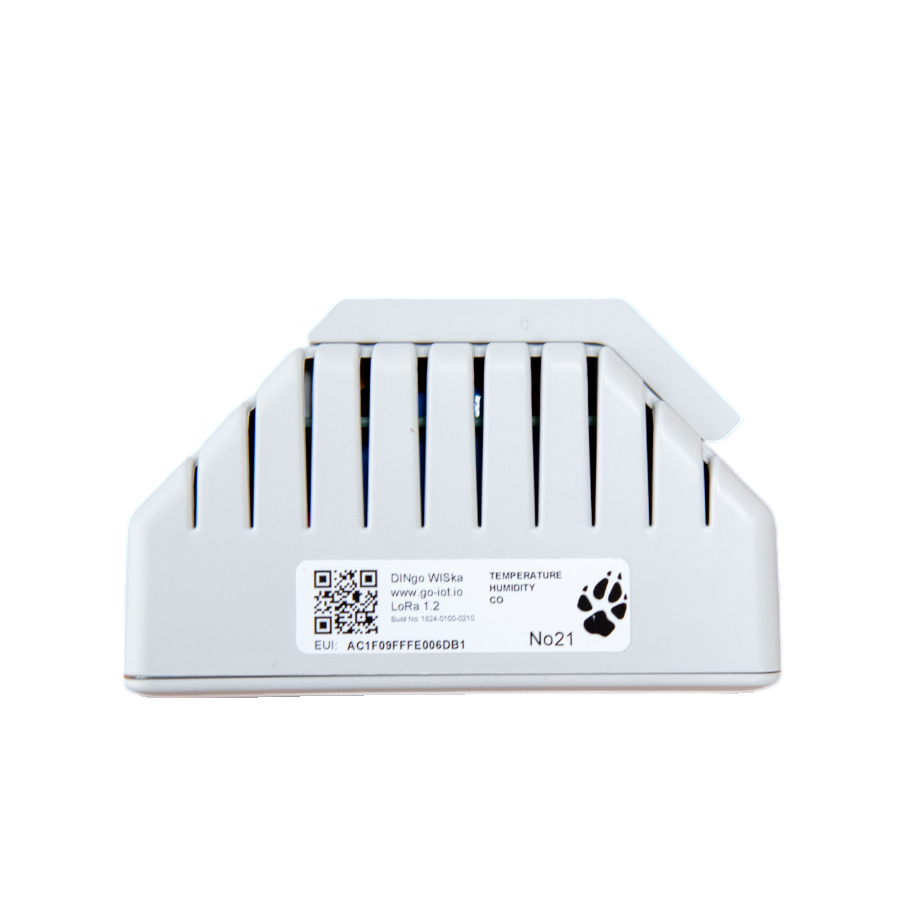

Case Style Edge – 100 x 100 x 54 mm (excluding wall mount bracket)
Case Colour – ABS – White, Light Grey (standard), Black
For full data and more information regarding options please see the datasheet or use the contact form to enquire.
