DINGO DIN Baseboard Series n-Station Overview
The Go-IoT DINGO DIN Baseboard Series provide the base pcb assembly for the large range of computer boards, user interface boards and plug in boards available in the Go-IoT DINGO mezzanine modular gateway family. Above all the baseboard defines the number available positions for plug in boards – currently 2, 3 or 4. In addition, options for relay outputs, inputs and power further expand the possibilities.
- 2, 3 or 4 Plug in Positions
- 1 USB 2.0
- 2 Serial TTL Interface
- 1 I2C Port
- 1 SPI Port
- 8 Opto Isolated Binary Inputs (Standard Option)
- 2 Relays (Standard Option)
- 1 x 40 way header from Computer Board
- 1 x 20 way header from Computer Board
- 21 x GPIOs (in Expansion Connectors)
- 12V Input (Wide range available as Special Option)
- -20 degree C to +85 degree C
- Size: (2- Station) 102 x 85 x 38.5mm
- Designed to clip into Go-IoT DIN Boxes
- Manufactured in the EU

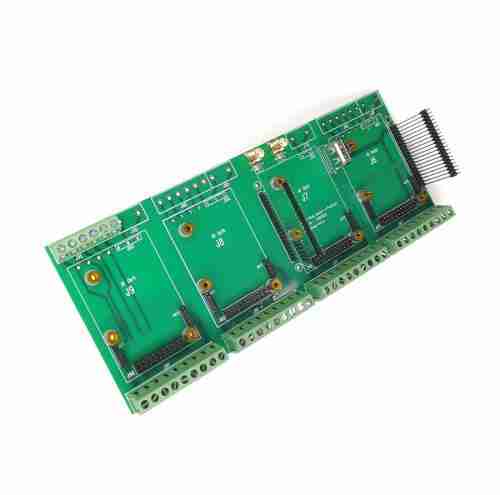

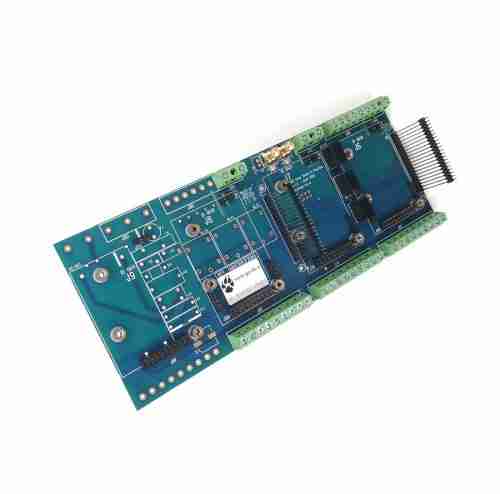

Note: The standard option 2-, 3-and 4- Station baseboards come fitted with relay outputs (x2) and 8 opto-isolated inputs. In addition, positions 1, 2 and 3 can be fitted with either wired or wireless connectivity Plug in boards. However, the standard 4- Station baseboard position 4 is only for wireless connectivity Plug in boards. Furthermore there is also an optional 4- Station baseboard which can accomodate 4 wired or wireless Plug in boards in all positions but it does not have relay outputs or opto-isolated inputs. Lastly custom baseboards can be realised (no relays, no inputs, shape, function, etc.) – please enquire.
