Description

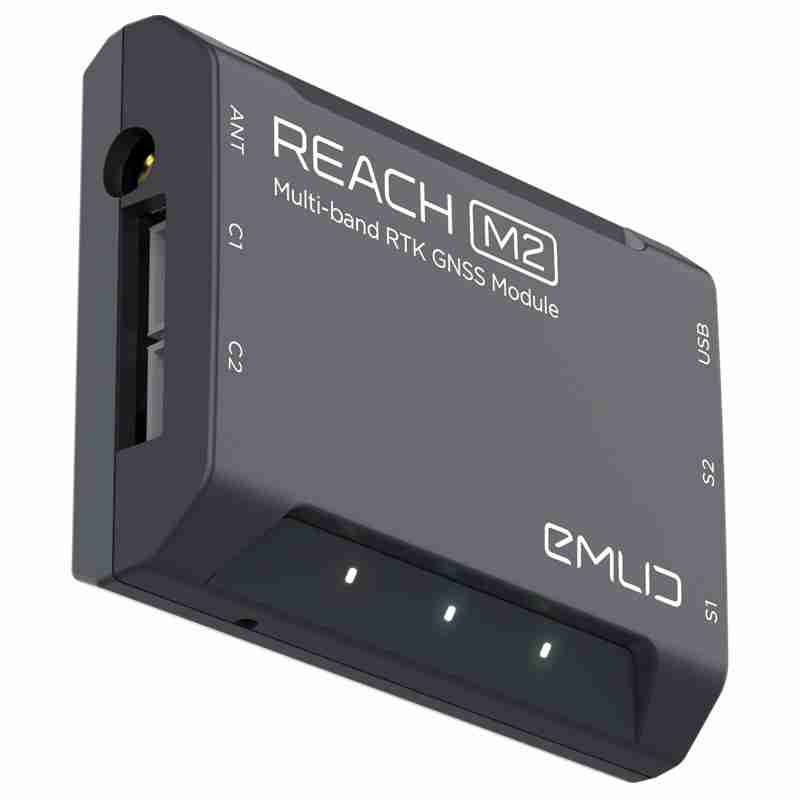

Emlid Reach M2 is a compact and affordable Multi-band GNSS RTK receiver with built-in IMU for precise navigation and UAV mapping without ground control points. It can provide coordinates down to centimeters in RTK mode. RTK mode requires a Reach M2 UAV RTK Kit.
Emlid RCH103 Multi-band RTK GNSS Module Features:
RTK positioning for navigation
PPK for UAV mapping
Centimeter accuracy without ground control points
Sync directly with Camera hot shoe port
Control with ReachView app
Products included in Emlid RCH103 Package:
Reach M2
USB cable
JST-GH 6-pin to jumper pin cable
JST-GH 5-pin to jumper pin cable
Centimeter Accuracy with the Reach M2
The Emlid Reach M2 needs access to corrections for centimeter accuracy. Obtained over the Internet (NTRIP) or a local Reach RS2 base station can be used.
NTRIP Corrections
NTRIP (Networked Transport of RTCM via Internet Protocol) allows a RTK GNSS receiver (client) to communicate with a base station (caster) over the internet to achieve cm level accuracy.
Base Stations
A base station is a unitset to a known latitude, longitude and height. This is referred to as a “known”™ point. This base will keep monitoring the satellites above and will calculate position corrections and send them to the Rover.
An Emlid Reach RS2 is suitable for use as a base station. They are capable of transmitting corrections locally or over the internet. If set up locally, all recorded positions will be relative to the position of the Base Station.
Baseline
Whether using NTRIP or a RS2 sending corrections over the internet. It is important to note the baseline. The baseline is the term given to the distance between the base station and the GNSS Receiver (Reach M2). The baseline is important, because the atmospheric conditions will be different at different locations. Therefore there will be less accuracy the further the rover gets from the base.
