Description

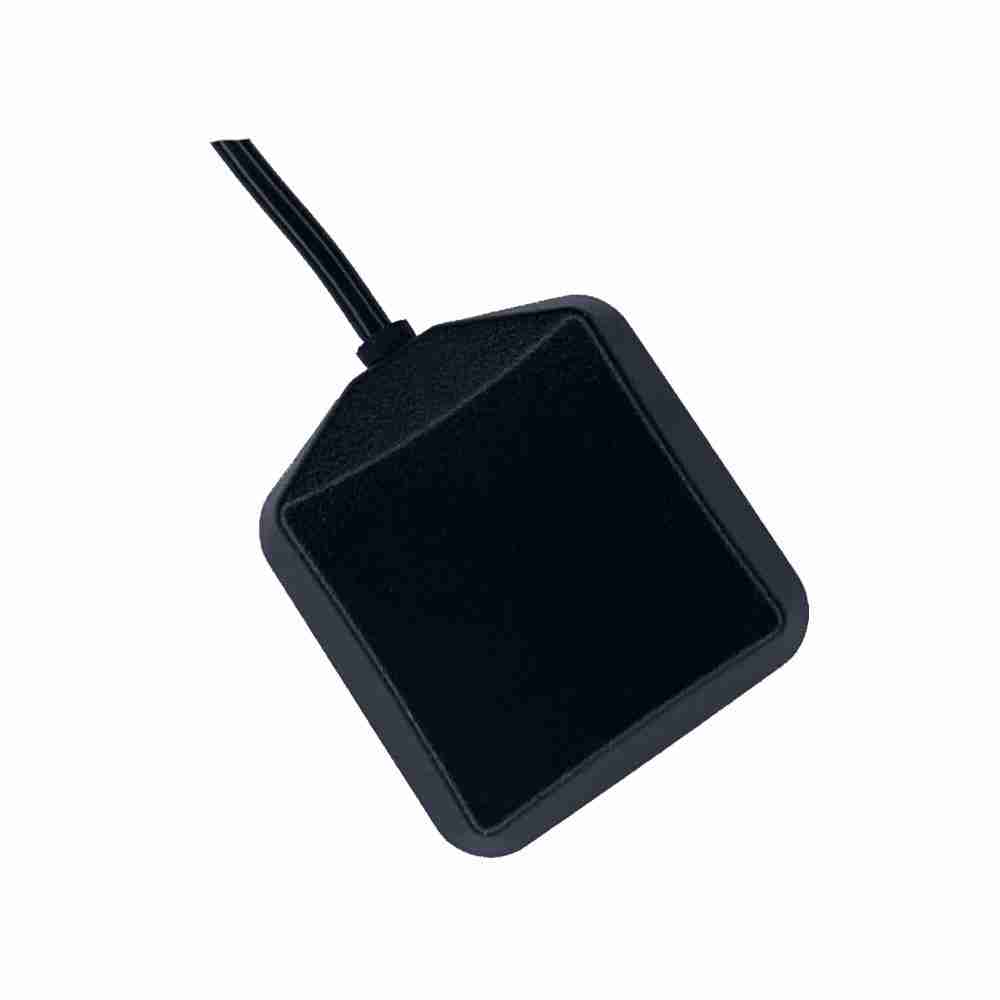

GPS Active Magnetic-Mount Antenna
The Inpaq GPS05K-S3-04-A GPS Active Magnetic-mount antenna is designed for temporary/permanent use.
The antenna is designed with a small size and for low power consumption for use in applications such as Satellite Navigation.
The GPS05K-S3-04-A GPS Antenna Features:
- Frequency Range 1575.42MHz +/-1.023MHz
- Gain 28dB +/- 4dB across temperature range
- Industrial Temperature Range: -40 to +85?
- Noise Figure 2.0 dB (Typ.)
- Output Impedance 50 ohms
- Output V.S.W.R 2.0 Max.
- Dimensions: 37.4×34×12.95 mm
- 5 meter RG174 cable with SMA Plug
- Black Radome
- DC 3V +/- 0.6V Operating Voltage
- 13 +/- 3mA Power Consumption
