Description

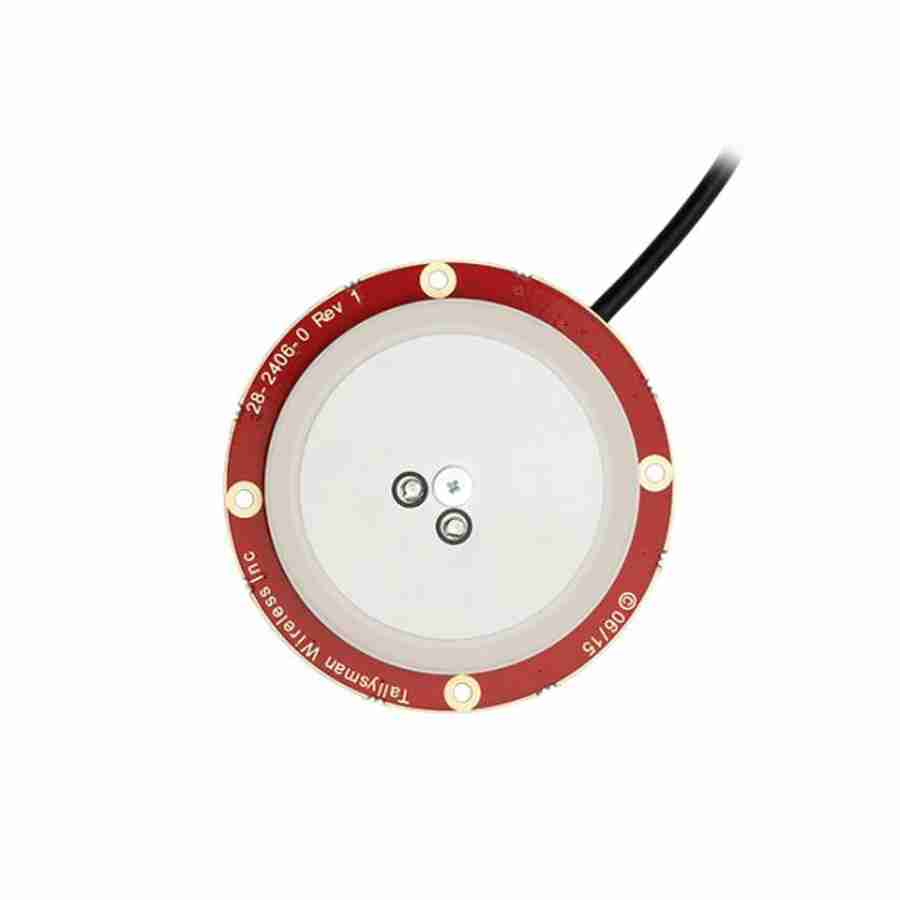

Ideal for precision industrial, agricultural and all challenging applications the TW2706 provides excellent circular polarized signal reception, great multi-path and out-of-band signal rejection.
The TW2706 features a customizable high performance, dual-feed, wide band patch element. Its Low Noise Amplifier (LNA) configuration provides a LNA for each feed, a mid section mid-section Surface Acoustic Wave (SAW) filter for the combined signal, followed by a final stage of LNA. This configuration provides excellent axial ratio that is constant across the full frequency band.
Tallysman offers custom tuning services to optimize the performance of the TW2706 for any OEM installation environment.
LNA Pre-filter Available
If you need enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi, the alternative TW2708 provides these additional benefits with an LNA pre-filter
Features
- Great axial ratio: 1 typ., 3 dB max
- Low noise LNA: Ω1 dB typ.
- High rejection SAW filter
- LNA gain: 28 dB typ.
- Low current: 15 mA typ.
- Wide voltage input range: 2.5 to 16 VDC
Benefits
- Excellent multipath rejection
- Increased system accuracy
- Excellent signal to noise ratio
- Great out of band signal rejection
- Ideal for harsh environments
- RoHS compliant
