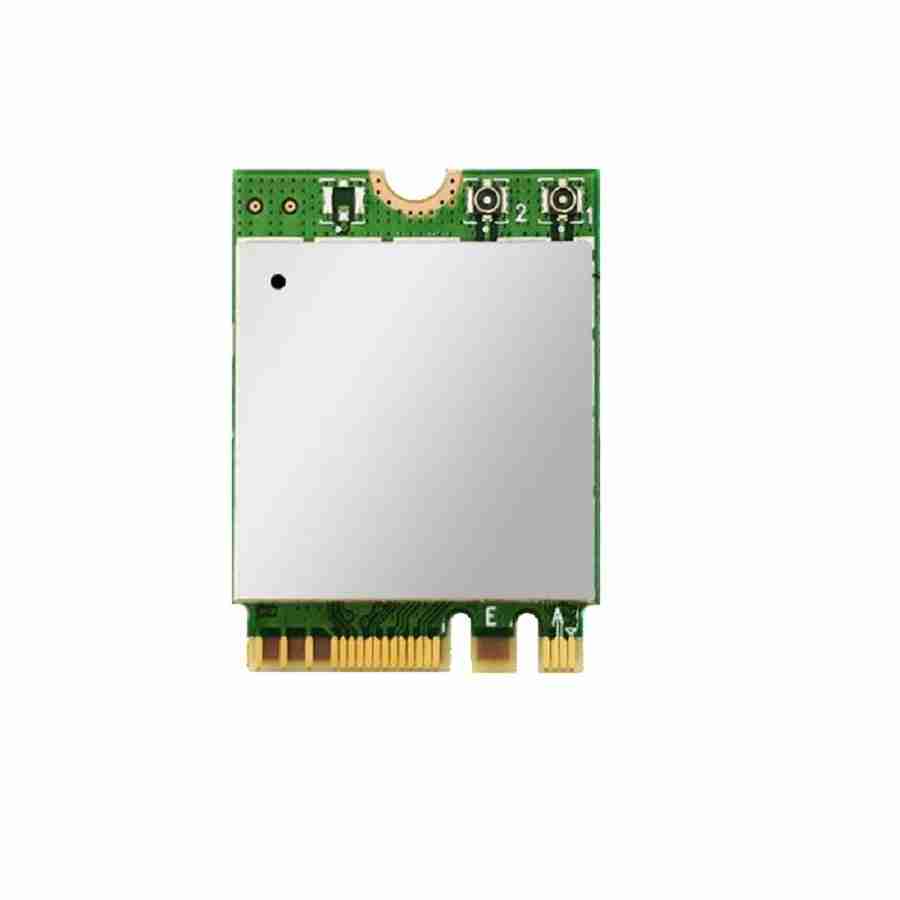

WNFT-238AX(BT) 802.11ax/ac/a/b/g/n dual-band Wi-Fi Bluetooth Module

Description

WNFT-238AX(BT) 802.11ax/ac/a/b/g/n dual-band Wi-Fi Bluetooth Module

SparkLAN WNFT-238AX(BT) is an 802.11ax/ac/a/b/g/n Dual-Band Wi-Fi Bluetooth 5.2 M.2 (Key A,E) Combo module based on the Realtek RTL8852AE chipset.   This module supports MU-MIMO two streams on dual band 2.4GHz or 5GHz operating. The data rate up to 1200Mbps on ac mode. The WNFT-237ACN(BT) is designed by M.2 2230 slot type form factor.

• High Speed 802.11ac/a/b/g/n Wi-Fi Bluetooth 5.2 M.2 (Key A,E) 2230 Module
• Chipset: Realtek RTL8852AE
• Antenna: 2 x IPEX MHF4 connectors, 2T2R
• Form Factor: M.2 2230
• Interface: PCIe: WLAN, USB: BT
• Two-stream spatial multiplexing up to 1200Mbps data
• Bluetooth 5 system (BT 5.2 Logo Compliant), V4.2, V4.1, V4.0 LE, V3.0, Bluetooth V2.1+EDR system, backward compatible with BT version of 1.1, 1.2 and 2.0
• Output Power up to 19dBm
• Support drivers : Windows 10
• Certifications: CE (RED EN300328 V2.2.2 / EN301893 V2.1.1), FCC, IC, MIC, NCC, ASNZS
