Description

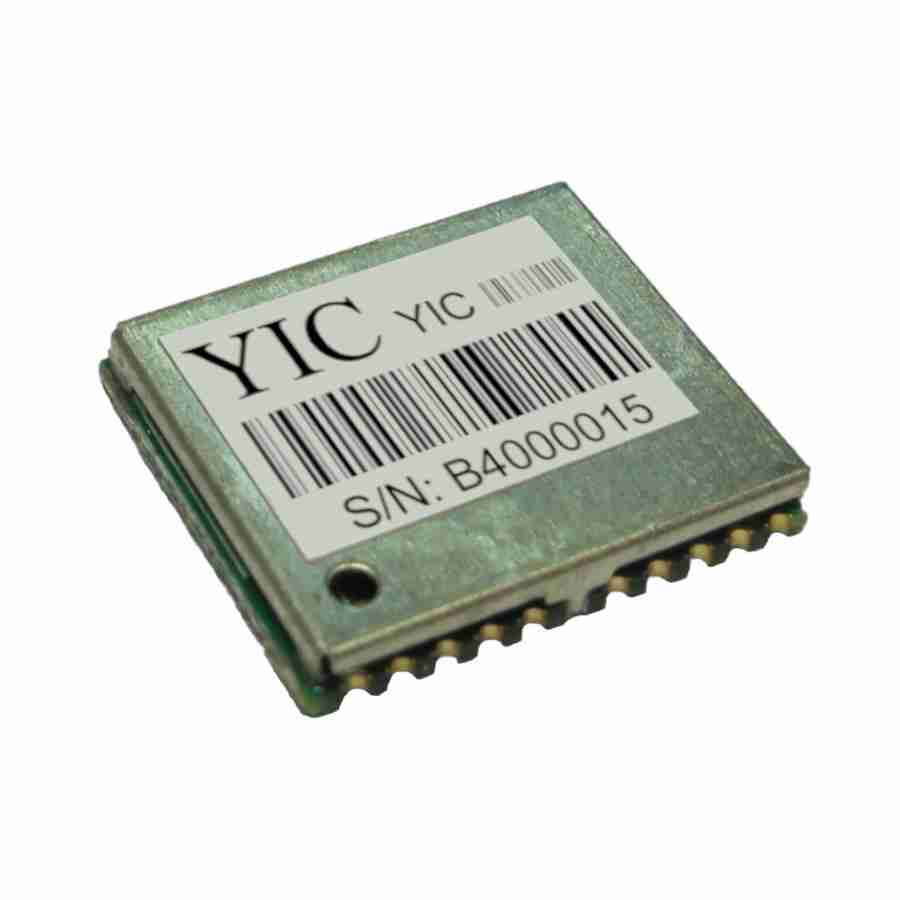

The YIC91612EB is a GNSS/GPS Receiver Module is powered by a UBX-G7020 Chipset, designed for high performance, low power consumption and to be compact.
The YIC91612EB supports 56 channels.
The YIC91612EB provides a 1s Hot Start / 29s Cold Start.
The YIC91612EB is 10.1 x 9.7 x 2.5mm
The YIC91612EB Ublox UBX-G7020 Powered GPS Receiver Module, Compact, High Performance, Low Power Features:
High performance and low power consumption GNSS Chipset
Very high sensitivity
Extremely fast TTFF (Time To First Fix) at low signal level
Two serial ports Built-in LNA
Compact size suitable for space-sensitive application
One size component, easy to mount on another PCB board
Support NMEA 0183 and ublox binary protocol
