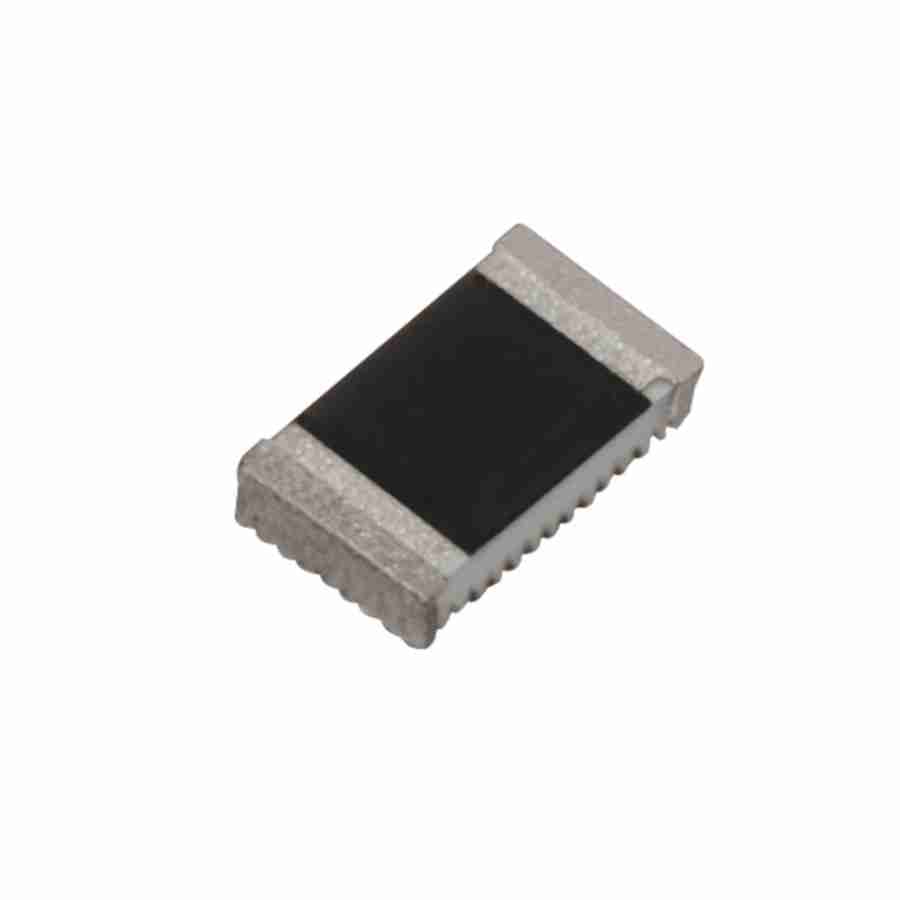

Inpaq ACA-2012-A1-CC-S Chip Antenna for 2.4GHz ISM Band

Chip Antenna for 2.4GHz ISM Band 2.0 x 1.2 x 0.55mm

Enquire Now

Product Documents

The ACA-2012-A1-CC-S 2.4GHz chip antenna is designed to include Wi-Fi, TWS Bluetooth and Zigbee as well as other 2.4GHz applications. Applications such as Smart Buildings, Smart Homes, IoT, Security.

The ACA-2012-A1-CC-S 2.4GHz chip antenna is low profile and covers a very small surface area (2×1.2x.55mm), making it perfect for use in very small hand held devices.

The ACA-2012-A1-CC-S 2.4GHz chip antenna is designed to be surface mounted for speed and lower production costs.

The ACA-2012-A1-CC-S Chip Antenna for 2.4GHz ISM Band Features:
Center Frequency (MHz) 2442
Frequency Band (MHz) 2400 ~ 2483
V.S.W.R. < 3.0
Polarization Linear
Impedance 50Ω
Peak Gain 1.7dBi
Efficiency 72%
Dimension 2.0 x 1.2 x 0.55mm
