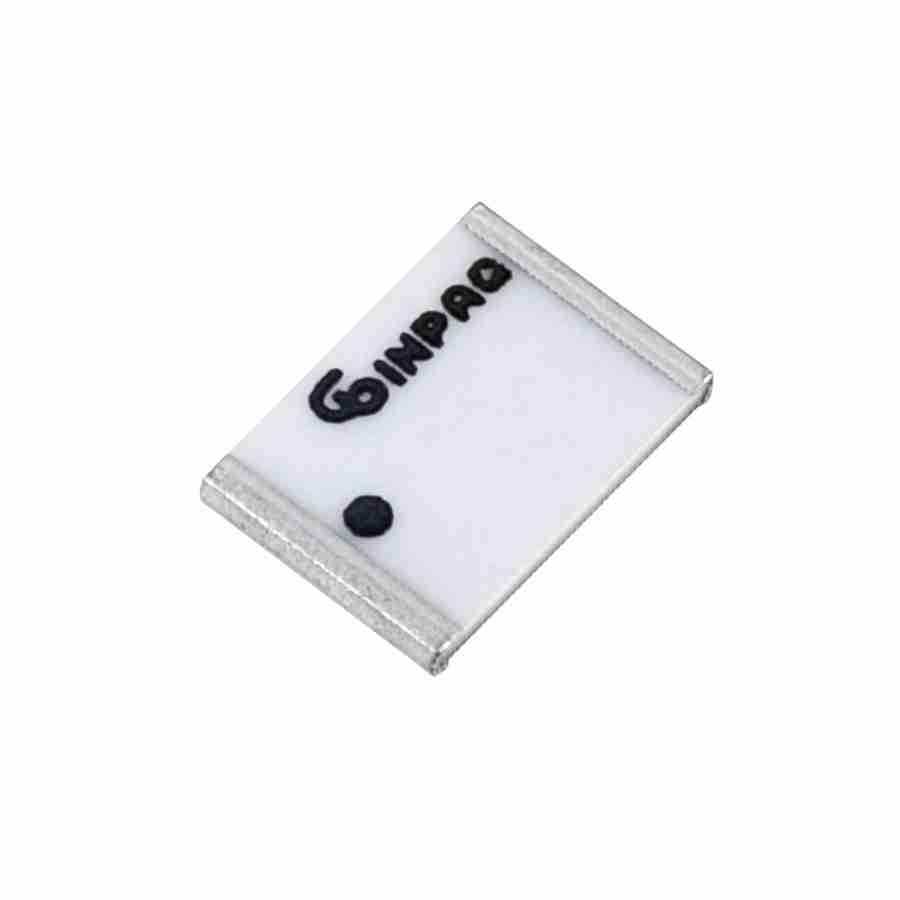

Inpaq ACD-5036-A3-CC-S Chip Antenna for GPS

Chip Antenna for GPS
Dimension 5.2 x 3.7 x 0.7 mm

SKU: IP-ACD-5036-A3-CC-S Categories: , Brand:
Enquire Now

Product Documents

The ACD-5036-A3-CC-S GPS chip antenna is designed for applications such as Smart Buildings, Smart Homes, IoT, Security, Smart Speakers.

The ACD-5036-A3-CC-S GPS chip antenna is low profile and covers a very small surface area, (5.2×3.7×0.7mm) making it perfect for use in very small hand held devices.

The ACD-5036-A3-CC-S GPS chip antenna is designed to be surface mounted for speed and lower production costs.

The ACD-5036-A3-CC-S Chip Antenna for GPS Features:
Center Frequency 1575.42 MHz
Frequency Band 1570 ~ 1580 MHz
V.S.W.R. < 2.0
Polarization Linear
Impedance 50Ω typ.
Peak Gain 3.4 dBi
Efficiency 83 %
Dimension 5.2 x 3.7 x 0.7 mm
