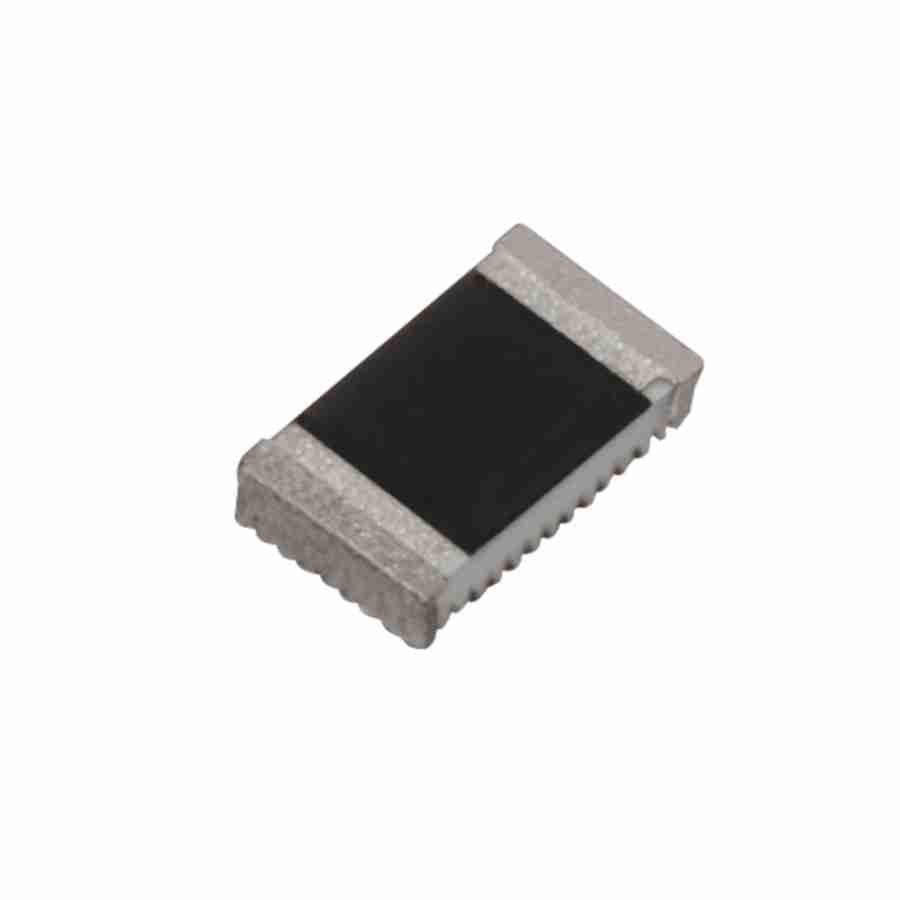

Inpaq ACM0-3216-A1-CC-S GPS Wi-Fi (2.4GHz) Chip Antenna

GPS Wi-Fi (2.4GHz) Chip Antenna
Dimension 3.2 x 1.7 x 0.5 mm

SKU: IP-ACM0-3216-A1-CC-S Categories: , , Brand:
Enquire Now

Product Documents

The ACM0-3216-A1-CC-S GPS/Wifi chip antenna is designed for GPS and Wifi 2.4GHz applications such as mobile devices

The ACM0-3216-A1-CC-S GPS/Wifi chip antenna is low profile and covers a very small surface area, (3.2 x 1.7 x 0.5 m) making it perfect for use in very small hand held devices.

The ACM0-3216-A1-CC-S GPS/Wifi chip antenna is designed to be surface mounted for speed and lower production costs.

The ACM0-3216-A1-CC-S GPS Wi-Fi (2.4GHz) Chip Antenna Features:
Center Frequency 1575.42 / 2450 MHz
Frequency Band 1570 ~ 1580 / 2400 ~ 2500 MHz
V.S.W.R. < 2.5
Polarization Linear
Impedance 50Ω typ.
Peak Gain 0.6 / 0.9 dBi
Efficiency 58 / 71 %
Dimension 3.2 x 1.7 x 0.5 mm
