Description

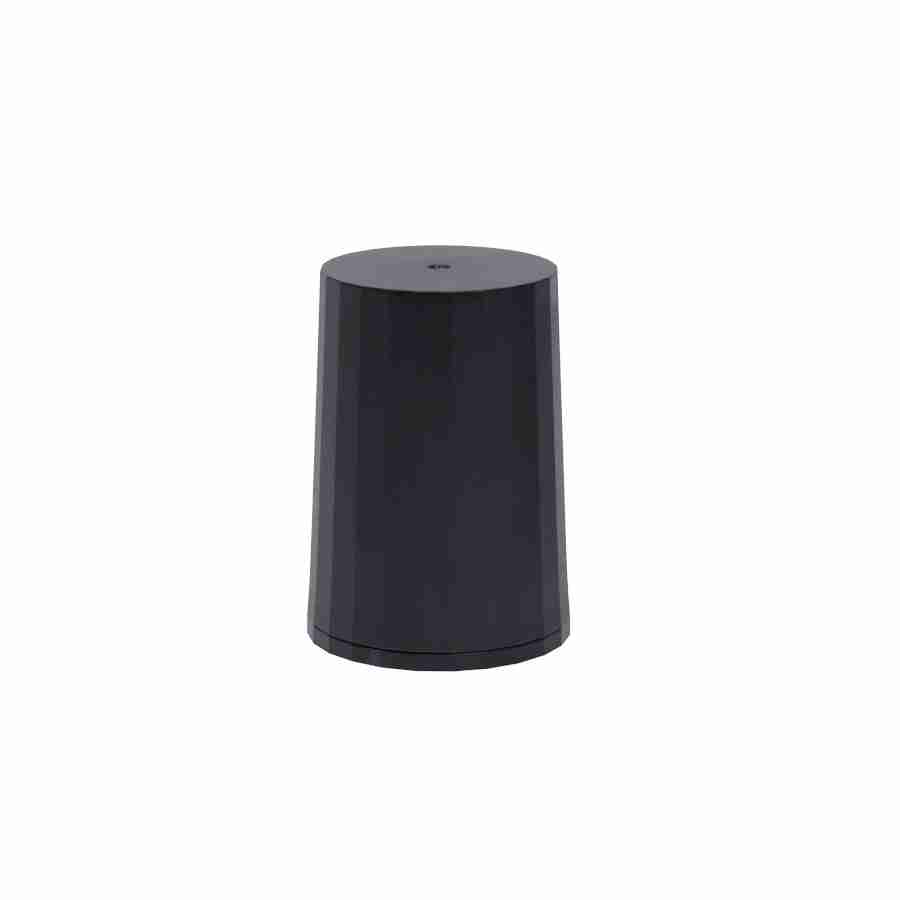

HC977XF a triple band helical antenna with L-band and an Extended Filter. Covering GPS, QZSS , GLONASS, Galileo, BeiDou and NavIC Global Navigation Satellite Systems (GNSS) as well as L-band correction services.
HC977XF triple band helical antenna with L-band and an Extended Filter Features:
Very low noise preamp: 1.6 dB
Axial ratio: Ω 0.5 dB at zenith
LNA gain 28 dB typ. or 35 dB typ.
Low current: 15 mA typ. or 21 mA typ.
ESD circuit protection: 15 kV
Invariant performance from 2.2 to 16 VDC
IP67, REACH, and RoHS compliant
Tallysman HC977XF Covers:
GPS L1 L2 L5
QZSS L1 L2 L5
GLONASS G1 G2 G3
Galileo E1 E5a E5b
BeiDou B1 B2 B2a
L-Band corrections
Tallysman’s HC977XF Benefits from:
Extremely lightweight (42 g)
Ideal for L1 / L2 / L5, E1 / E5a / E5b RTK surveying systems
Great multipath rejection
Increased system accuracy
Excellent signal to noise ratio
HC977XF, features a precision tuned helix element. As a result it provides excellent axial ratios while operating without the need of a ground plane. It is ideal for a variety of uses such as UAVs.
Tallysman‘s HC977XF features an industry-leading low current, low noise amplifier (LNA) that includes an integrated low-loss pre-filter to protect against harmonic interference from high amplitude interfering signals, such as 700 MHz band LTE and other near in-band cellular signals.
HC977XF is protected by a robust, military-grade plastic enclosure with an integrated SMA connector for screw-on mounting that securely seals the unit with an O-ring, complying with IP67 standards. The enclosure also provides three threaded holes in the base for secure attachment of the unit.
Tallysmanâ„¢s eXtended Filter (XF) antenna technology has been designed to mitigate out of band signals and prevent GNSS antenna saturation.
