Description
TW3010, single band permanent mount GPS L1 antenna. Covering GPS, QZSS and SBAS Global Navigation Satellite Systems (GNSS).
Tallysman TW3010 Permanent Mount GPS L1 antenna Features:
Very low noise LNA: 1 dB
Great axial ratio
High rejection SAW filter
High gain: 28 dB typ.
Low current: 9 mA typ.
ESD circuit protection: 15 KV
Wide voltage input range: +2.5 to 16 VDC
Weather proof housing: IP67
TW3010 Covers:
GPS L1
QZSS L1
SBAS WAAS / EGNOS / MSAS
Tallysman TW3010 benefits from:
Great multipath rejection
Increase system accuracy
Excellent signal to noise ratio
Great out of band signal rejection
Ideal for harsh environments
RoHS compliant
Tallysman TW3010 features a customisable, ceramic patch element, a Low Noise Amplifier (LNA) as well as a mid section SAW. As a result it supports a great axial ratio across the full frequency supported by the antenna. Additionally, TW3010 features superb phase linear response and tight phase centre variation.

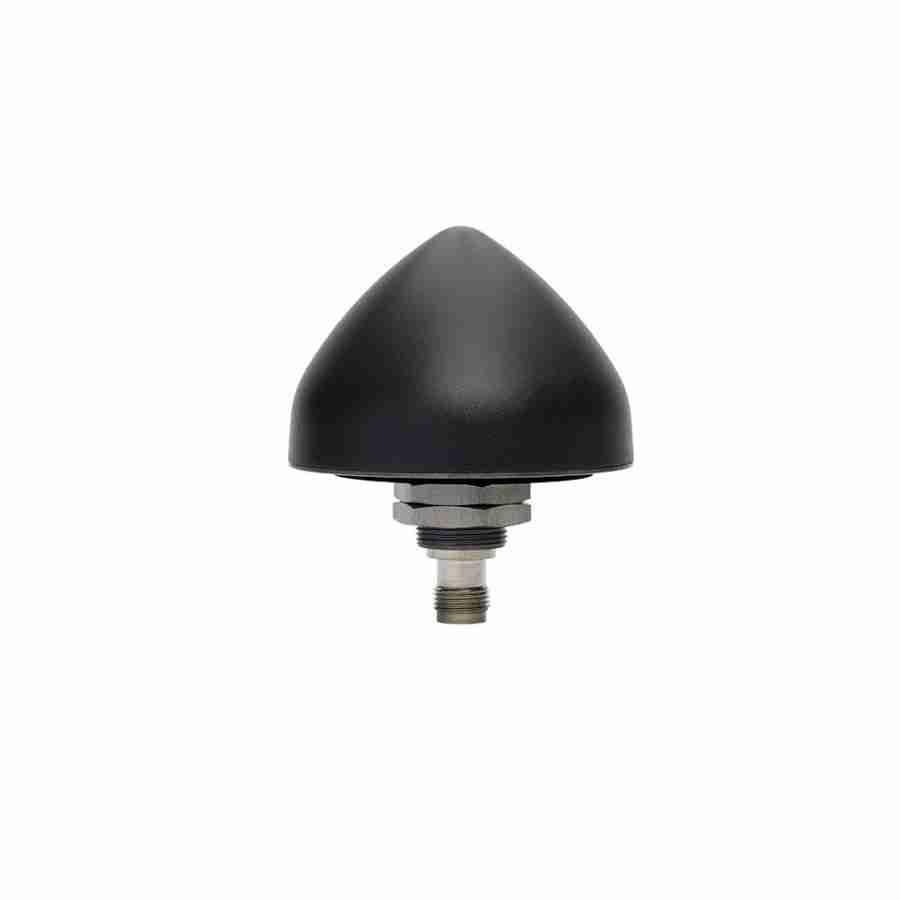

TW3010 is housed in a permanent mount, industrial grade, weather proof housing. In order to better complement the environment in which it is installed, TW3010 is available in conical or flat radome styles as well as in grey, white or black (conical only).
A precision antenna, providing GPS for challenging, precision and timing applications.
LNA Pre-filter Available
Allowing for enhanced protection for signals such as LTE and near frequency signals, such as WiFi, Tallysman offer their TW3012 Through hole GPS L1 Antenna with Pre-filter.
