Description

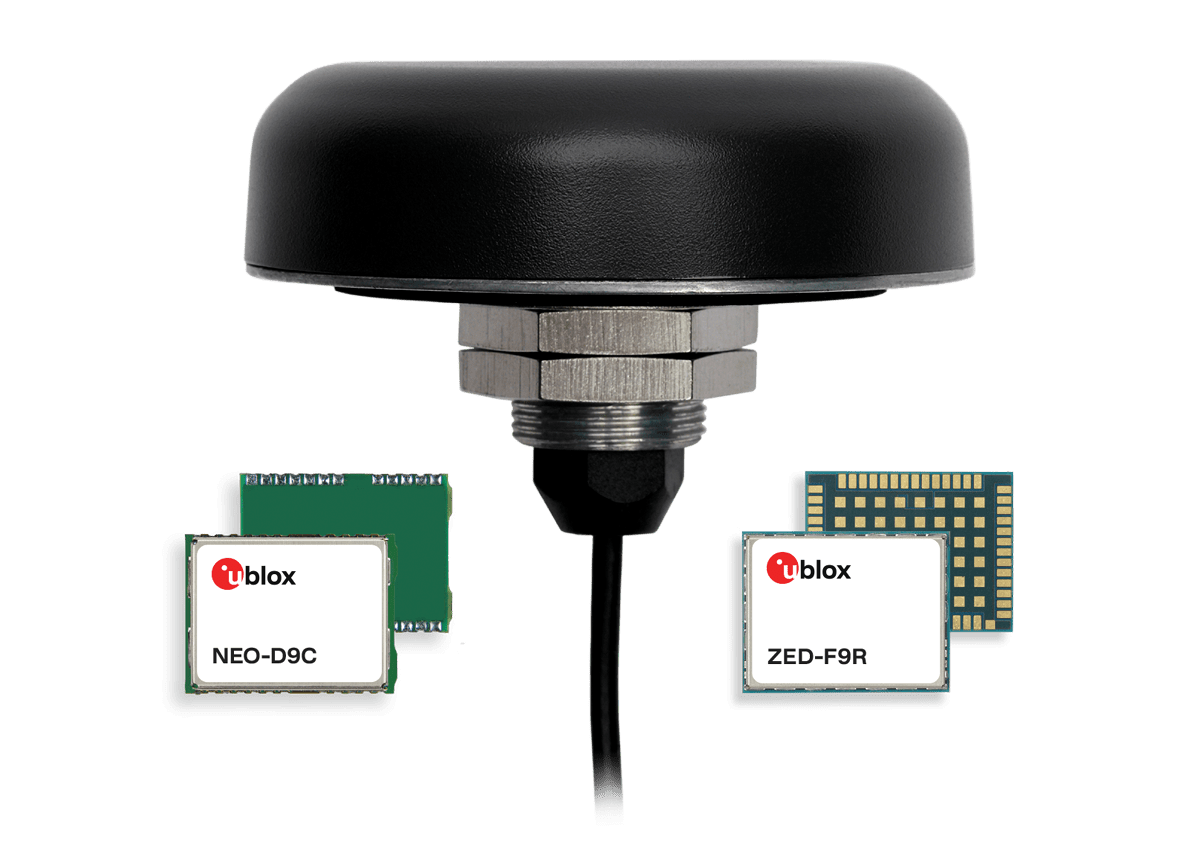

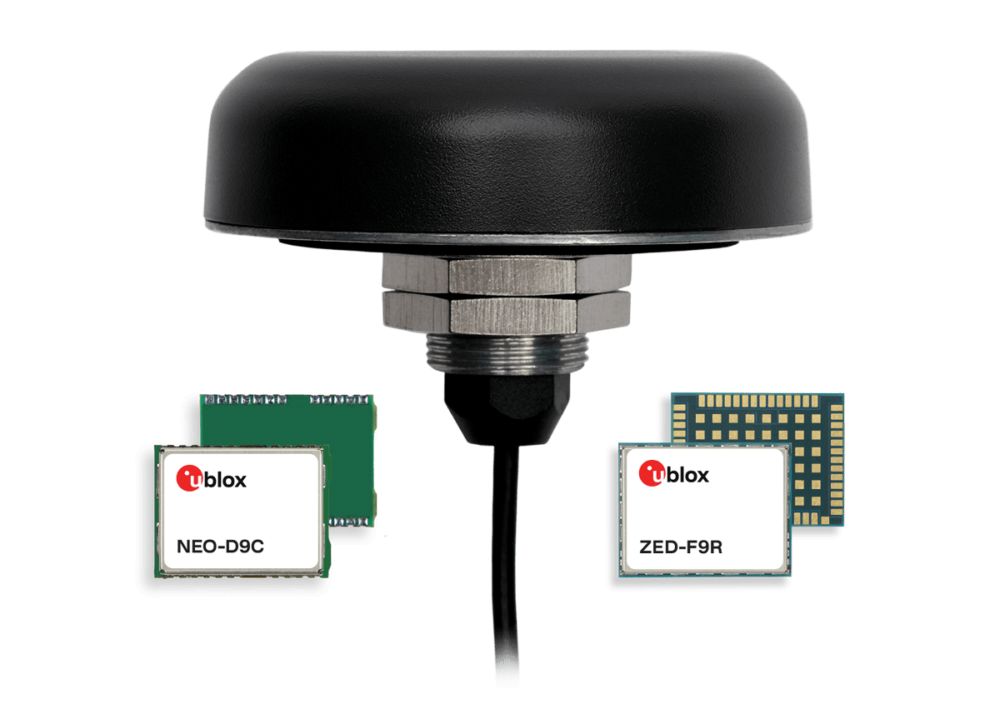

TW5390, Smart GNSS Antenna (integrated GNSS receiver antenna) with Inertial Measurement Unit (Untethered Dead Reckoning). Covering GPS, GLONASS, Galileo, Beidou Global Navigation Satellite Systems (GNSS) as well as L-band Correction Services.
Tallysman TW5390 Smart GNSS Antenna with Dead Reckoning Features:
Integrated L-Band corrections receiver for exceptional precision
Improved noise immunity with multi-band GNSS receiver
Improved multi-path rejection with Dual feed Accutenna™
Multi-band GNSS receiver is unaffected by ionospheric errors
High-reliability timing with an expansive constellation array
High position availability in urban environment with UD
5V operation
RS-485 differential signalling
Industrial grade IP69K enclosure
Rugged fixed mount
Multiple cable lengths (5m, 15m and 25m)
Available with conical radome
TW5390, a multi-band (L1/L2), multi-constellation integrated GNSS receiver antenna with Inertial Measurment Unit (Untethered Dead Reckoning) and integrated L-Band corrections receiver for stand alone RTK for Precise Point Positioning. Tallysmans TW5390 is capable of providing sub 10 cm accuracy to support the most demanding navigation, automation and precision agriculture applications.
TW5390 incorporates the latest generation multi-band (L1/L2) GNSS receiver with a Tallysman Accutenna™ multi band (L1/L2) dual feed patch. The state of the art GNSS receiver supports concurrent tracking of all four major constellations (GPS, BeiDou, Galileo and GLONASS ) in multiple frequency bands, offering high availability for RTK solutions with a quick convergence time. The multi-band (L1/L2) architecture is the most effective method for the removal of ionospheric error.
