Cascoda KNX IoT Development Kit

Cascoda KNX IoT Development Kit

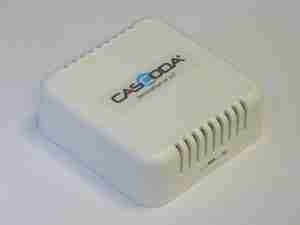

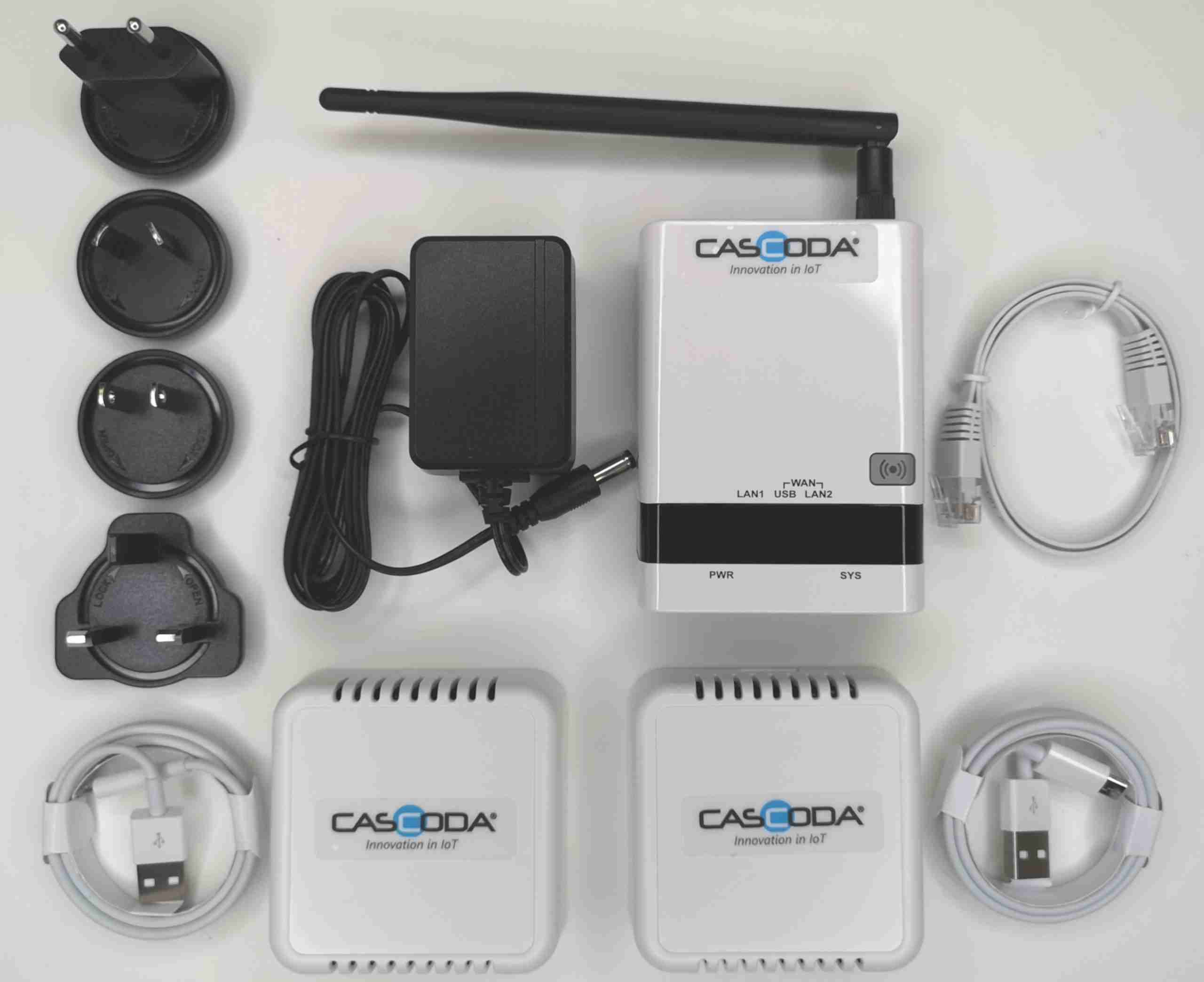

The KNX IoT development kit contains all you need to evaluate and develop your KNX IoT over Thread system. It comprises two Cascoda KNX IoT Development Boards housed in small 7.5cm x 7.5cm x 2.5cm sensor cases, one Cascoda KNX IoT Hub, one WiFi antenna, one ethernet cable, two USB cables and a multi-plug power supply.

In order to use the Cascoda KNX IoT Development Kit, a KNX configuration tool is needed. For this there are two options:

• Cascoda KNX IoT Linker: The Cascoda KNX IoT Linker is a configuration software tool that runs on Cascoda’s KNX IoT Hub
  • The Cascoda KNX IoT Linker can be used to configure KNX IoT systems only
  • The Cascoda KNX IoT Linker is available to Cascoda customers who purchase the Cascoda KNX IoT Hub

• KNX Association ETS 6: Configuration Software Tool to design and configure KNX Installations for intelligent home and building control
  • Issued by KNX Association, the ETS is the manufacturer independent solution for all certified KNX Products
  • ETS 6 can be used to configure all possible KNX installations, be it classic Twisted Pair, Radio Frequency and now even KNX IoT
  • Beta Versions of ETS 6 are available to KNX Members and support configuration of the Cascoda KNX IoT Development Kit

Cascoda KNX IoT Development Board Overview:

Cascoda’s KNX IoT Development Board provides everything you need to develop your KNX IoT over Thread application with the Cascoda Chili module. It featurs Cascoda’s SMARTRange™ technology to provide long-range Thread connectivity for whole-house coverage. In addition, Cascoda provides easy integration with Cascoda’s dashboard and our KNX IoT Hub for easy configuration and backhaul connectivity.

Board Features:

• Certified Thread-based radio supporting meshed networking, with long range
• Easy integration with Cascoda’s Border Router for IPv4/IPv6 backhaul connectivity
• Ultra-low-power battery operation & battery charging
• Four programmable buttons & LEDs
• E-Paper display integration
• A library of sensor & actuator plug-in boards, to develop your solution
• Automatic code generation for your chosen target combination of sensors/actuators/switches/leds

Board Specification:

• USB or UART connectivity
• 5V or 3.3V supply options
• 3.7V Li/LiPo battery integration with charging from a 5V supply or USB (cable provided)
• Two Mikroelektronika Click™ slots for a huge range of plug-in sensor/actuator connectivity
• Integrated chip antenna and an externa antenna option
• Dimensions 66 x 64mm

KNX IOT POINT API

Overview:

Cascoda’s Thread development board has been developed to work with KNX IoT Point API, the new transport medium of the KNX automation standard.

Features:

• Full support for KNX IoT Point API
• Proven with KNX ETS
• Supports KNX IoT Platform abstractions:

• • • Real-time clock
    • Pseudorandom number generator (PRNG)
    • Connectivity (Thread IPv6)
    • Secure Storage (Arm^® TrustZone^®)

• Easy integration with Cascoda’s dashboard
• Over-the-air software update
• Datapoint/functional block code-generation available
• Applications can be emulated on Windows or Linux, then run on Cascoda’s Thread development board

Cascoda KNX IoT Hub Overview:

Cascoda’s KNX IoT Hub provides everything you need to configure your KNX IoT system and connect to an IPv4/IPv6 backbone network. It is a compact low-power design, featuring Cascoda’s SMARTRange™ technology to provide long-range Thread connectivity for whole-house coverage. In addition, Cascoda provides a web-interface for comprehensive configuration and network management.

Features:

• Compatible with existing IPv4/IPv6 backbone networks
• Integrated Thread, PoE, ethernet, and Wi-Fi connectivity
• OpenThread Thread stack for long-term maintenance
• Based on the popular and well-supported OpenWrt Operating System
• Comprehensive configuration, network management & visualization tools

Specification:

• Qualcomm QCA9531 chipset up to 650 MHz
• Flash 16MB, SDRAM 128MB
• Low power (12V, 1A DC), or Passive PoE (24V DC) input (multi-plug power supply included)
• 2× Fast ethernet, one with passive PoE (24 V)
• 802.11b/g/n Wi-Fi connectivity
• External or internal antenna options
• Dimensions 98 x 74 x 28mm

COMPREHENSIVE NETWORK CONFIGURATION

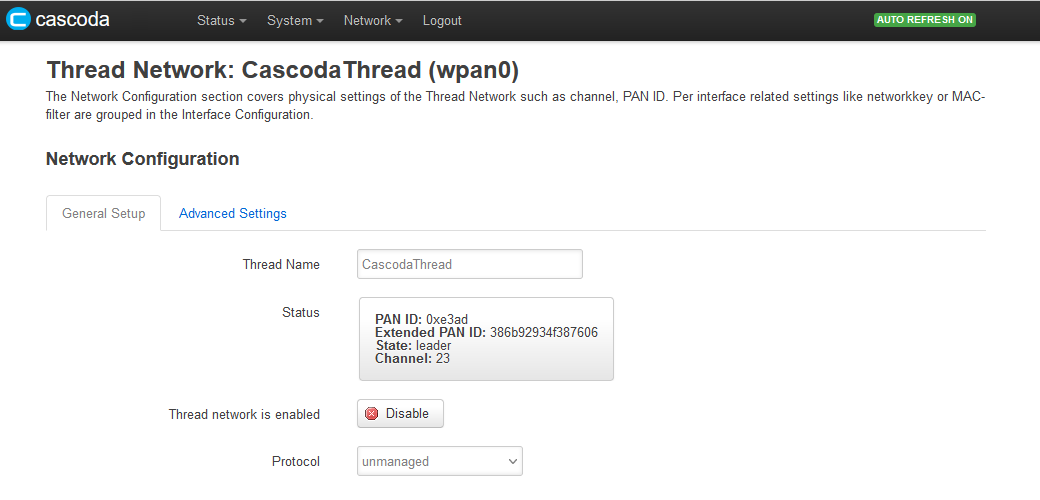

NETWORK VISUALISATION AND MAPPING
