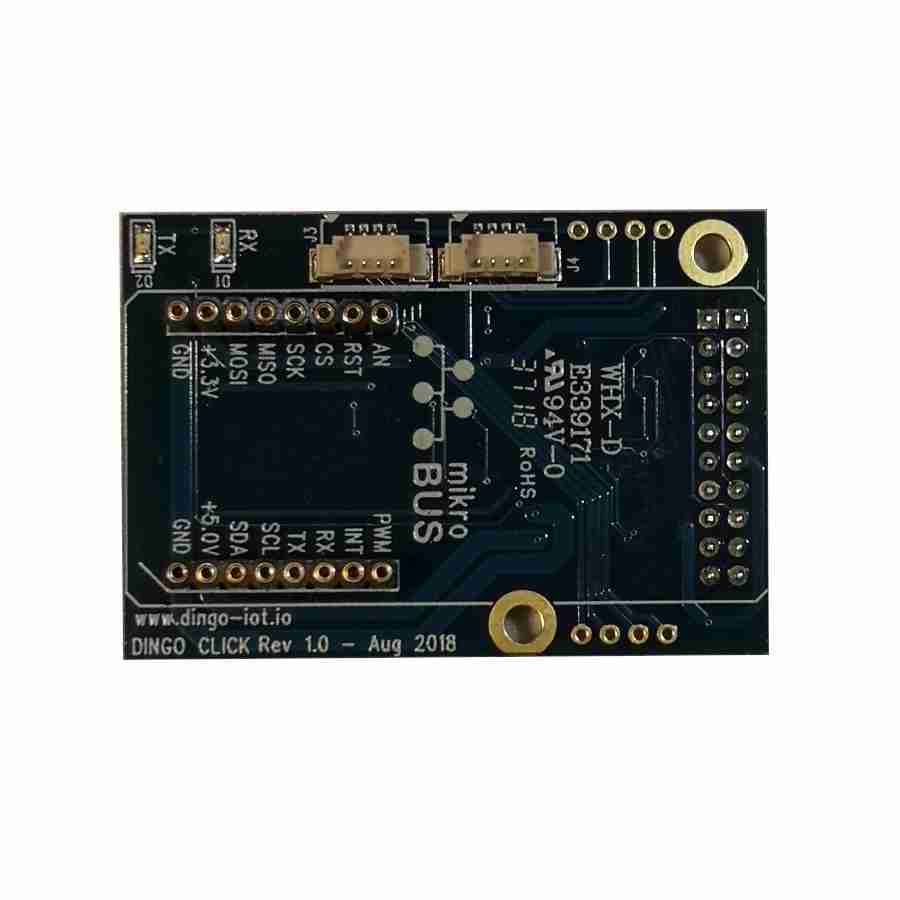

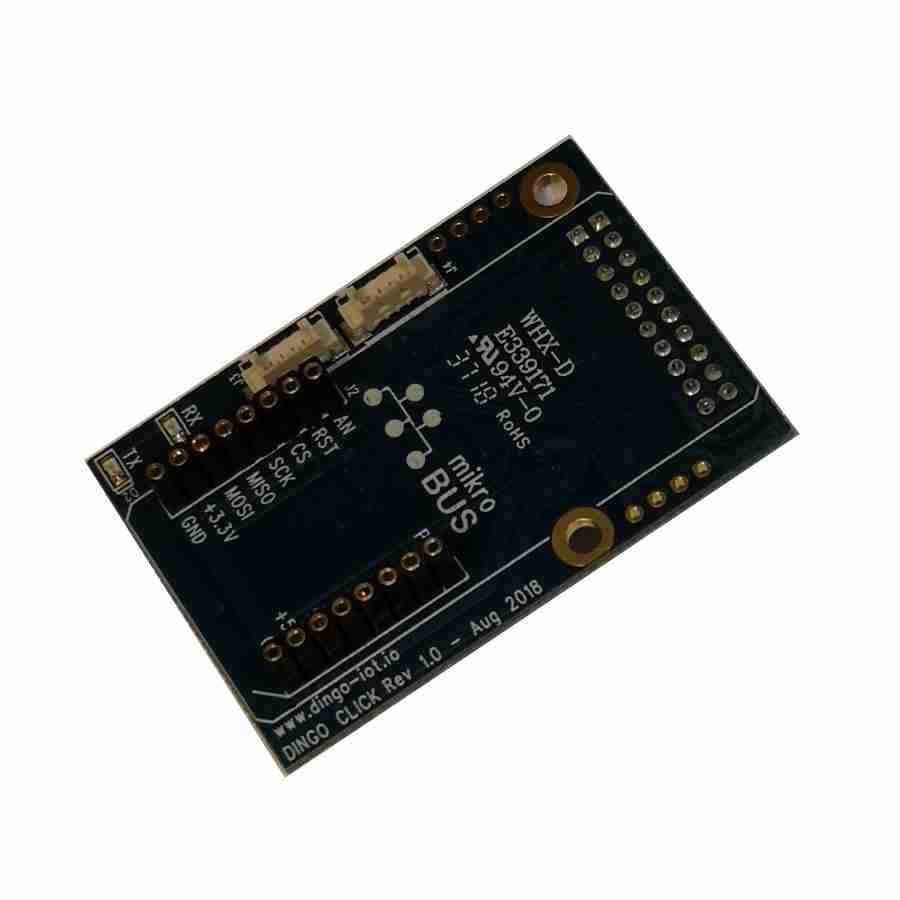

DINGO CLICK Plug-in

Overview

The DINGO CLICK Plug-in allows users to source from the vast array of mikroBUS™ modules to extend the DINGO platform interface and sensor options beyond the current offering of Plug-ins.

Specifications

• CLICK Interface Connectors
  • 2 x 10way 0.1” Pitch Female
• Expansion Connectors
  • 1 x 20way header from Base Board
  • 2 x 4way headers from Base Board
• DC Input
  • +5V
• Temperature
  • -20degree C to +85degree C
• Size (L x W)
  • 60 x 40 mm
• Country/Region of Manufacture:
  • EU
