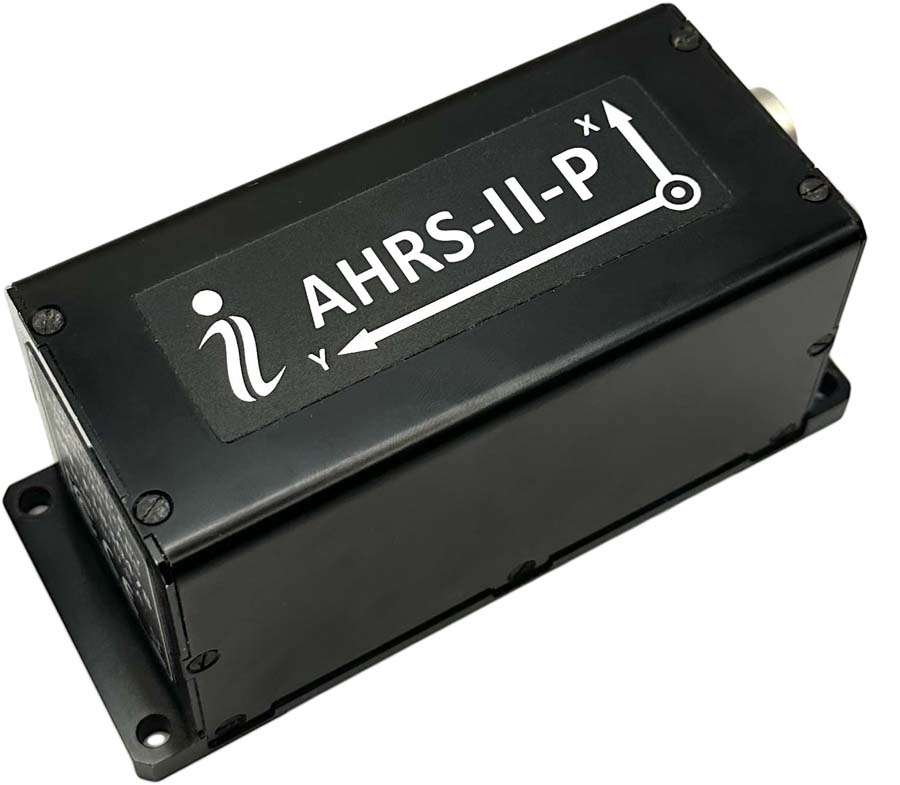

Inertial Labs AHRS-II-P High Performance Attitude and Heading Reference System

Description

AHRS-II-P utilizes Tactical-grade IMU: 3-axes each of precision accelerometers & gyroscopes and Ultra High precision, gyro-compensated, embedded Fluxgate Compass to provide accurate Heading/Yaw, Pitch, and Roll of the device under the measure. Integration of gyroscopes”™ output provides high frequency, real-time measurement of the device rotation about all three rotational axes. Accelerometers and Fluxgate magnetometers measure absolute Pitch, Roll, and magnetic Azimuth at AHRS initial alignment and provide ongoing corrections to gyroscopes during operation.
