Infomart PEB9300BT Series Power over Ethernet (PoE) IEEE802.3bt 90W All-In-One Board

PEB9300 Series IEEE802.3bt 90W All-In-One Board

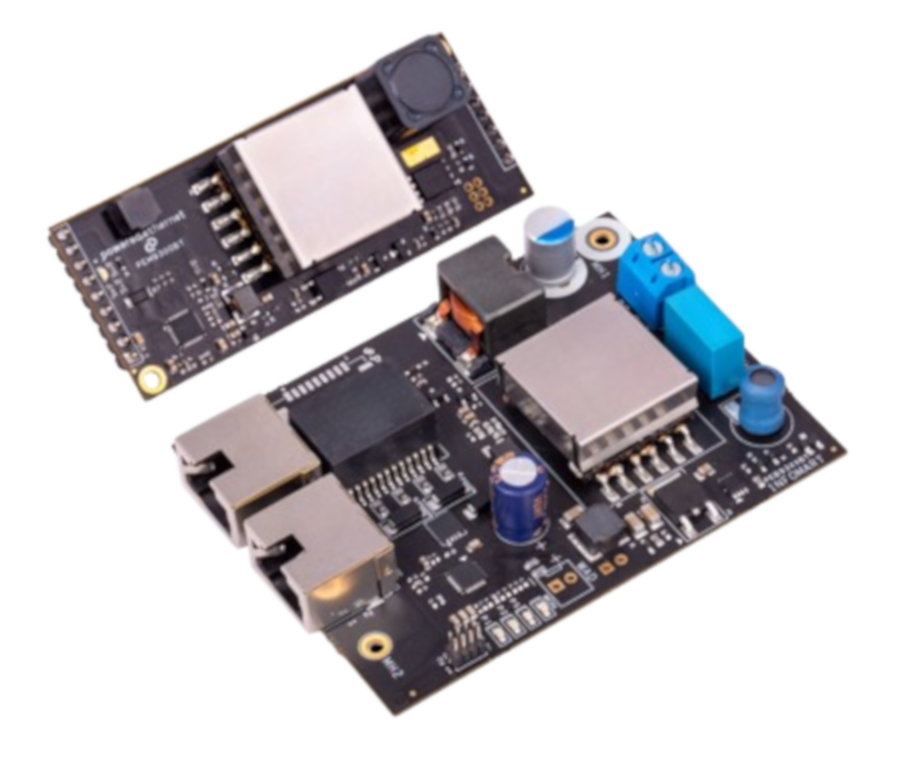

The PEB9300BT series of Power over Ethernet (POE) board, offers a complete ready to use all in one board IEEE802.3bt POE solution, offering type 4, Class 8 and output power up to 90 Watts when sourced from a compatible POE Power Sourcing Equipment (PSE).
The PEB9300BT has full functional compliance with the IEEE 802.3bt Power over Ethernet (PoE) standard and backward compliance to IEEE802.3af & IEEE802.3at standards.
The PEB9300BT provides functionalities like Under voltage protection, over-temperature protection and MPS (Maintain Power Signature) to avoid the power disconnect from PSE. PL1, PL2 and PBT pins indicates the class level of modules.
Advance Circuit topology of PEB9300BT provides very high efficiency up to 93% and well-regulated low noise and low ripple output with the in-built overload, output short-circuit and in-rush current protections.
The devices provide optional feature that can detect the presence of wall adapter power and allow a smooth switch-over from the PoE power source to the wall adapter.
For those wishing to integrate the IEEE802.3bt onto a motherboard we offer the PEM9300 Series here.
