INTRODUCTION IEEE802.3bt Module Eval Board
This manual serves as a guide for using the “PEM9300BT Evaluation Board” with one of the PEM9300BT modules. The evaluation board fully complies with the IEEE 802.3bt Power over Ethernet (PoE) standard and is backward compatible with the IEEE 802.3af and IEEE 802.3at standards. It is designed to support Ethernet data rates of 10/100/1000/10GBASE-T.
The board facilitates the evaluation of PEM9300BT format modules within applications. It is specifically engineered to pass Ethernet data signals from the Midspan PSE or PoE-enabled switch connected to the J1 port (RJ45), while also connecting to the system through the J2 port (RJ45).
Please find the PEM9300bt PD Module information here.
Kit Contents
• 01 x Evaluation Board
• 04 x Mounting Stem- 4nos
• 06 x Jumpers
• 04 x Stem End Cap
• 04 x Bumper Feet

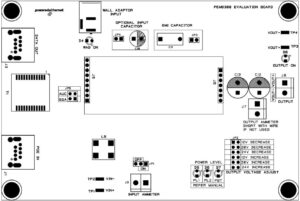

Board Layout
