KTS1640/41 OVP Switch with Single Input, Dual Output Switches with 200V Surge Protection

OVP Switch with Single Input, Dual Output Switches with 200V Surge Protection

Enquire Now

Features

  • Wide input operating range from 6V to 40V DC Input
  • Low resistance MOSFET Switch typ. 41mΩ
  • Reverse Battery Protection to -28V
  • Fixed over-voltage protection
    • Fixed: 27V ± 0.8V (KTS1640) or 20.3V ± 0.8V (KTS1641)
  • Fast OVP response time typ. 360ns
  • Continuous output current up to 6A
  • Over-temperature Protection with Auto-Retry
  • Open drain fault flag
  • Shutdown pin with low shutdown current
  • Voltage Input detection output
  • Input ESD protection to IEC61000-4-2 (Level 4)
    • Contact: ±8kV
    • Air: ±15kV
    • Other pins HBM: ±2kV
  • Pb-free TDFN44-12 package
  • -40°C to +85°C operating temperature range

Applications

  • Reverse Power Supply Protection
  • Telecom/Server/Networking System
  • Industrial and Medical Systems
  • Portable Instrumentation

Key Electrical Specifications

Vin
(Min)
Vin
(Max)
 ON Resistance   Max Current   OVP Trip Point  Package
6.0V 40V 41.0mΩ 6.0A 27.0V  TDFN44-12

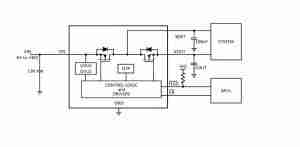

Typical Application Diagram
