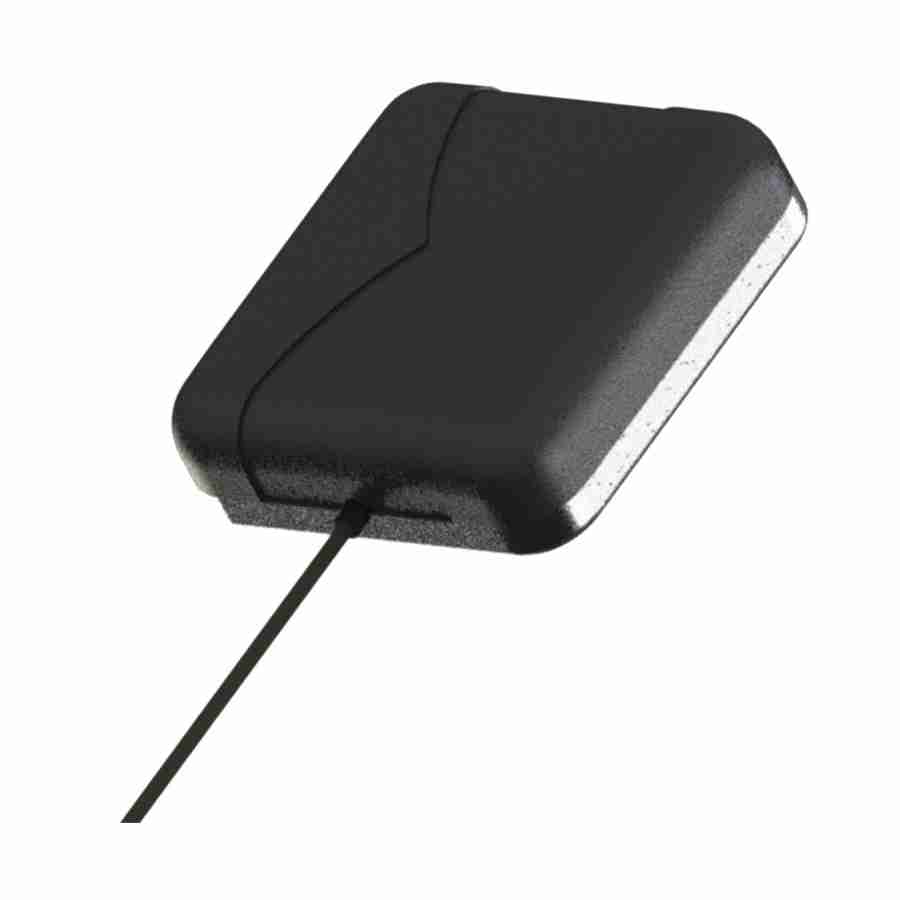

Maxtena M9706CWT GPS GLONASS Galileo Beidou L1/L2 Active Patch Antenna

The M9706CWT is an active conformal wave multi-frequency GNSS antenna built for L1: GPS, GLONASS, Galileo, Beidou L2: GPS L2C, Galileo E5B, GLONASS L30C, L2 OF.

The M9706CWT is designed for applications requiring greater accuracy than L1 only antennas can provide.

The M9706CWT excellent radiation pattern, exceptional out-of-band rejection, minimal group delay variation, and low noise figure ensures optimal performance of GNSS systems.

SKU: MAX-M9706CWT Category: Brand:
Enquire Now

The M9706CWT is an active conformal wave multi-frequency GNSS antenna built for L1: GPS, GLONASS, Galileo, Beidou L2: GPS L2C, Galileo E5B, GLONASS L30C, L2 OF.

The M9706CWT is designed for applications requiring greater accuracy than L1 only antennas can provide.

The M9706CWT excellent radiation pattern, exceptional out-of-band rejection, minimal group delay variation, and low noise figure ensures optimal performance of GNSS systems.

The M9706CWT is ideal for applications requiring minimal integration effort or for retrofitting existing products and is rated IP67. The antenna is manufactured using automotive grade housing.

The M9706CWT GPS GLONASS Galileo Beidou L1/L2 Active Patch Antenna Features:
Concurrent GNSS reception on L1: GPS, GLONASS, Galileo, Beidou and L2: GPS L2C, Galileo E5B, GLONASS L30C, and L2 OF
Low profile design
Conformal materials
Full active design with superb filtering
Rugged IP67 rating
Small form factor
Low power consumption
Minimal phase center variation over azimuth and elevation
Negligible group delay variation
Automotive grade
