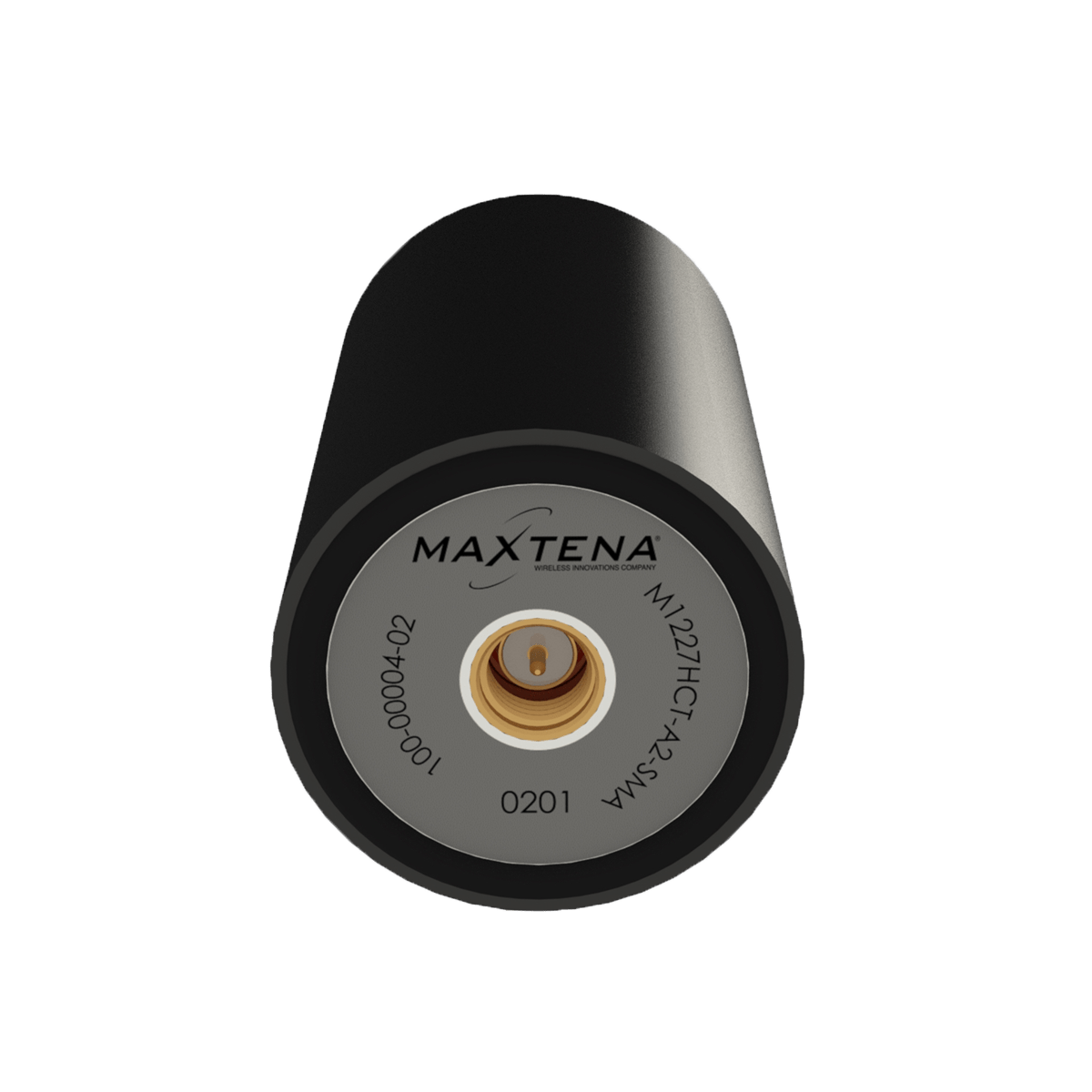

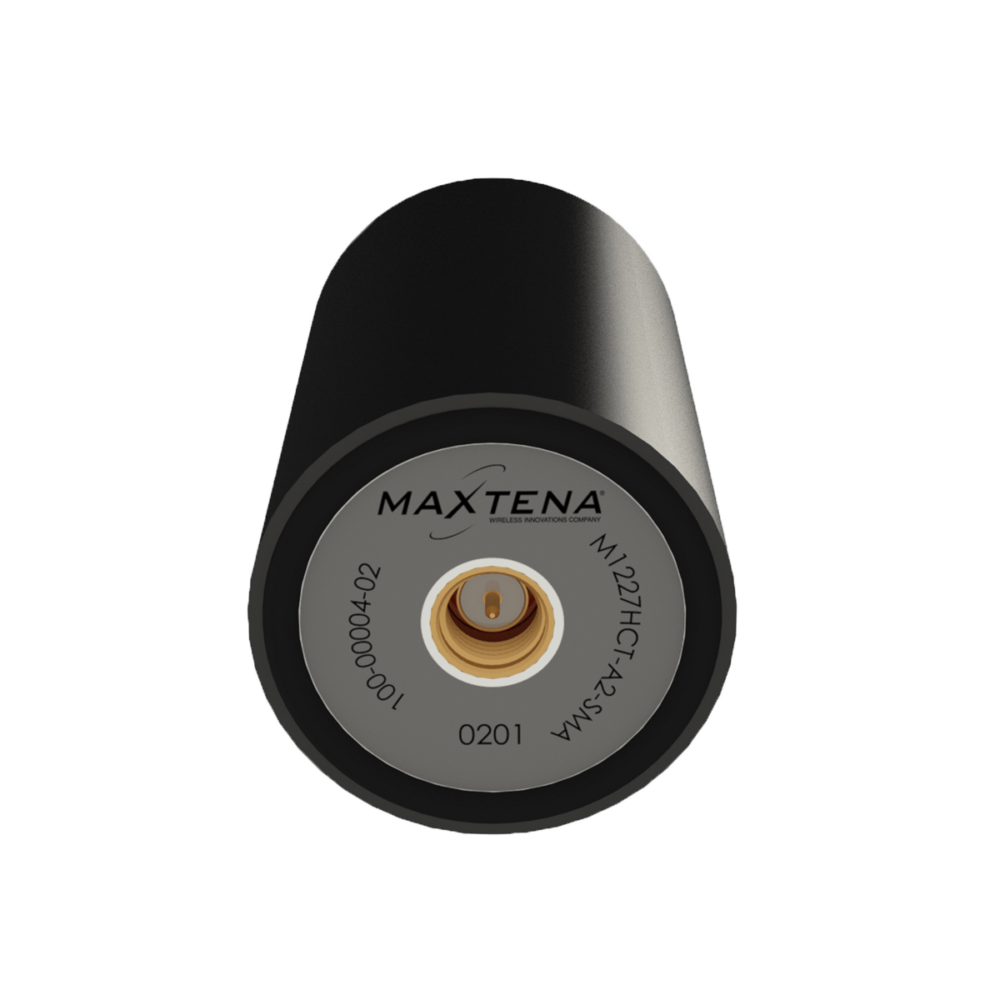

Maxtena M1227HCT-A2-SMA Active Helical GPS GLONASS Antenna 30dB

Brands:

The M1227HCT-A2-SMA is a high performance active rugged antenna designed for L1/L2 GPS and GLONASS bands for GNSS satellite applications.

The M1227HCT-A2-SMA active helix design features Maxtenaâ„¢s patented compact and light weight Helicoreâ„¢ Octofilar antenna technology.

Product Documents

Categories: , , , Brands:

Description

M1227HCT-A2-SMA active helical GPS GLONASS antenna 30dB. Covering the GPS and Glonass global navigation satellite systems (GNSS).

Maxtena M1227HCT-A2-SMA Covers:
GPS L1 L2
GLONASS G1 G2

Maxtena M1227HCT-A2-SMA Active Helical GPS GLONASS Antenna 30dB Features:
L1/L2 GPS-GLONASS bands
Rugged IP-67 rating
Superior out-of-band rejection
50 V/m jamming resistant
Very low noise figure
SMA mount
Ground plane independent
GIS & RTK applications
Ultra light weight – 24 grams (typical)

Maxtena M1227HCT-A2-SMA Covers:
GPS L1 L2
GLONASS G1 G2

Maxtena’s M1227HCT-A2-SMA Suitable for:
Precision navigation
Precision timing
Military & security
Asset tracking
Oil & gas industries
Navigation devices
Mining equipment
LBS & M2M applications
Handheld devices
Law enforcement

M1227HCT-A2-SMA an active helix design featuring Maxtenaâ„¢s patented compact and light weight Helicoreâ„¢ Octofilar antenna technology.

Maxtena‘s  M1227HCT-A2-SMA is packaged in a high quality, durable IP67 sealed radome housing and is 30(di) x 51mm.
