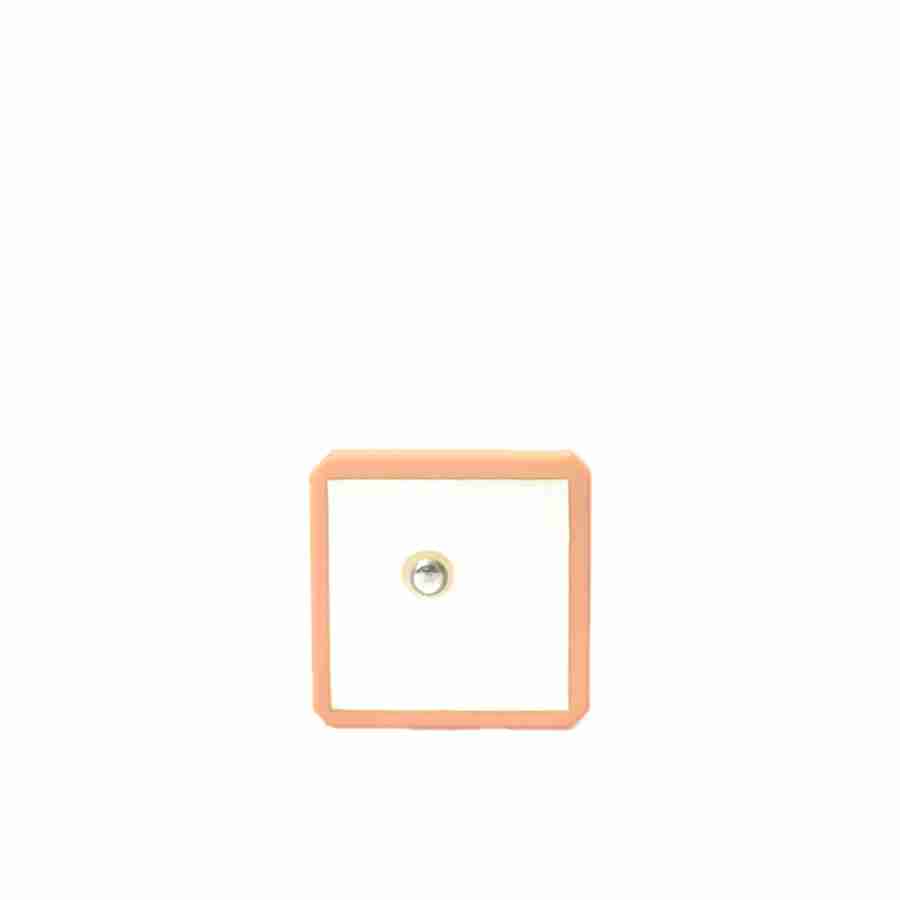

Maxtena MPA-1618 Globalstar Passive Antenna – 25mm

The Maxtena MPA-1618 is a high-performance, very low profile antenna designed for embedded applications that use the Globalstar Simplex system.

The Maxtena MPA-1618 antenna’s extreme compact size and lightweight make it perfect for various commercial and industrial appli-cations.

With a typical efficiency of 60% and peak gain of 3.5 dBic the Maxtena MPA-1618 can operate inside the most extreme and demanding applications providing maximum satellite reception and great performance.

The Maxtena MPA-1618 Globalstar Simplex antenna product is one of a kind on the market.

The Maxtena MPA-1618 interface connector is a through pin solution

The MPA-1618 Globalstar Passive Antenna – 25mm Features:
1618 MHz (Globalstar)
Through pin connector
Polarization: LHCP
Realized gain: 5 dB (min)
Efficiency: 80%
