Description

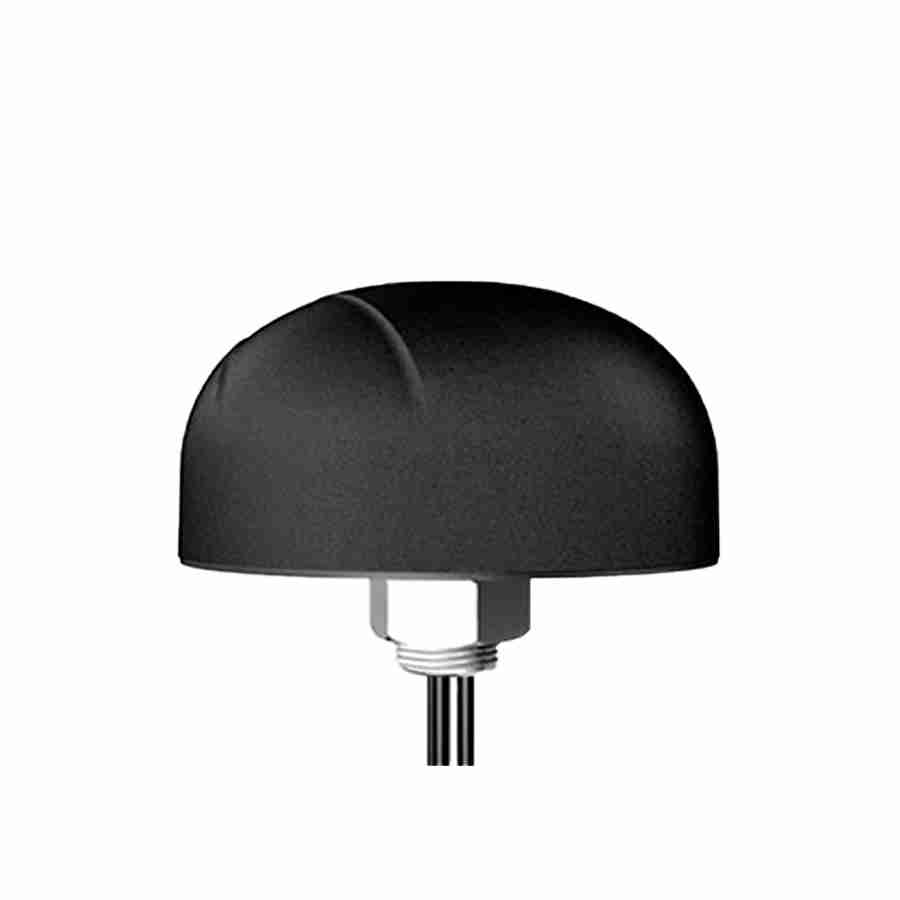

The NETZ 5 in 1 is a MIMO technology solution. Combining two LTE antennas, and two WiFi antennas with GNSS.
The NETZ 5 in 1 is ideal for high data throughput and streaming, video, industrial and IOT applications.
The NETZ 5 in 1 offers a low profile design with easy mounting and integrated SMA connectors.
The NETZ 5 in 1 is designed with rugged PC+ABS plastic black housing and is ideal for the most demanding environmental challenges.
The NETZ 5in1 5 in 1 Antenna – LTE-MIMO WIFI-MIMO GNSS – Screw Mount Features:
GNSS Frequency Range (MHz)1561 / 1575.42 / 1602 MHz
LTE MIMO Frequency Range (MHz)698~960 / 1710~2170 / 2300~2690 MHz
WIFI MIMO Frequency Range (MHz)2400~2500 / 5150~5850 MHz
Antenna Dimensions(mm): 141.98(di) x 66.5 mm
Mounting Function: Permanent Mount
Operating Temperature:-40°C +85°C
Housing Material & Color:PC+ABS & Black
