The NV08C-CSM-MINI-PCI-E Card is an easy-to-integrate card for the NV08C-CSM, to provide navigation functions to mobile and portable devices – Discontinued.
The NV08C-CSM integrated satellite navigation receiver is designed for use with GPS, GLONASS, Galileo and Beidou
The NV08C-CSM integrated satellite navigation receiver is low cost, low power and offers superior performance.

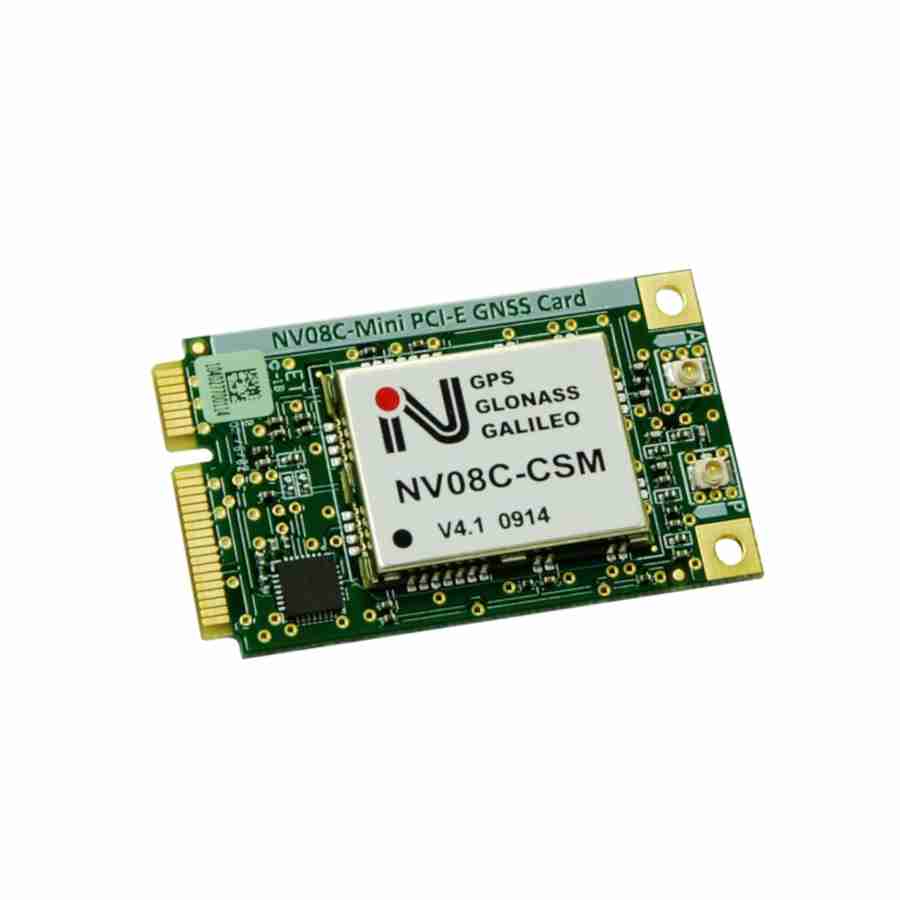

The NV08C-MINI-PCI-E Mini PCI Express (PCIe) Module. Features:
GPS, GLONASS, GALILEO, BeiDou, SBAS L1 signals
Compact 20x26x2,5 mm design for SMT assembly
Navigation and Time synchronization applications
32 GNSS tracking channels
Assisted GNSS option supported
Various Dead Reckoning options
200K correlators ensures small TTFF and high signal sensitivity
NMEA 0183 (IEC 1162), BINR, RTCM SC 104 data protocols
24 mW @ Low Power Time-to-Time Fix (TTTF) Mode
Extended operating temperature –40 to +85°C
