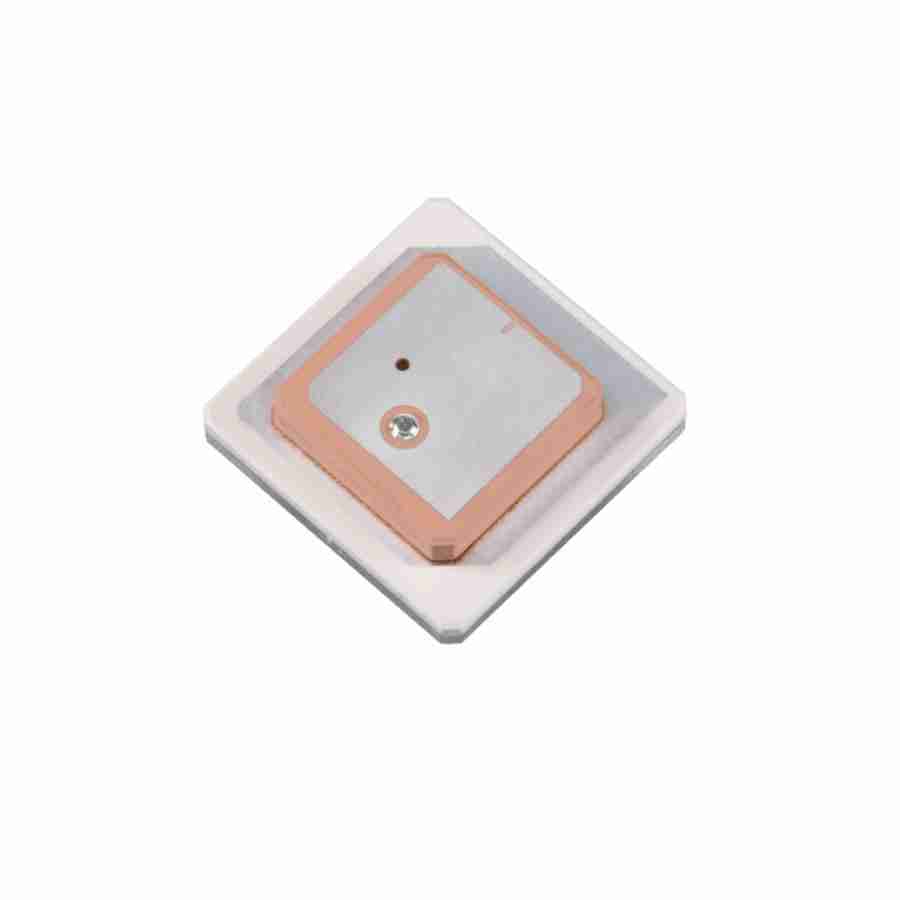

The PADGPS-I4H4G-101-17 ceramic stack antenna is designed with a centre frequency of 1575.42MHz for GPS L1 and 1227.6 for GPS L2.
The PADGPS-I4H4G-101-17 GPS L1/L2 Patch Antenna Stack Features:
Center Frequency: GPS L1: 1575.42MHz GPS L2:1227.6 MHz
Bandwidth: GPS L1: 34MHz typ. GPS L2: 12MHZ typ.
Polarization: R.H.C.P
Impedance: 50
Axial Ratio: ≦3dB
Dimensions: GPS L1: 25x25x4mm GPS L2:38x38x4mm
Stacked Patches”
