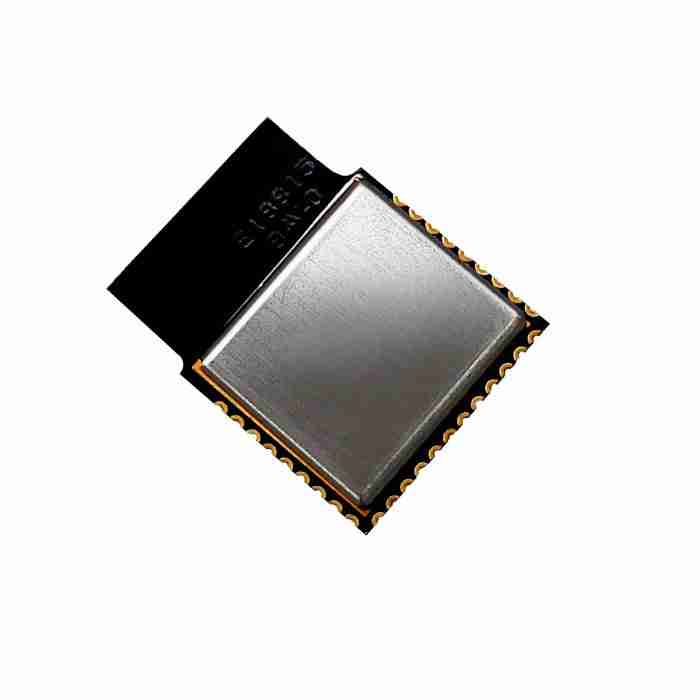

RYWB116, Industrial Grade WiFi b/g/n 2.4GHz Bluetooth UART / SPI Module With Antenna. Providing comprehensive multi-protocol wireless solution including 802.11 b/g/n, dual-mode Bluetooth 5.
RYWB116 Industrial Grade WiFi Bluetooth Module With Antenna Features:
Compliant to single-spatial stream IEEE 802.11 b/g/n, Bluetooth 5.
Co-existence of multiple wireless protocols managed by an internal protocol arbitration manager.
Ultra-low power consumption with multiple power modes to reduce the system energy consumption.
Leading edge RF performance providing long range and higher throughputs.
Transmit power up to +21dBm with integrated PA.
Wi-Fi receive sensitivity as low as -98.5 dBm.
BT receive sensitivity as low as -95 dBm.
Support for Client mode, Access point mode, Wi-Fi Direct and enterprise security.
Support for concurrent Wi-Fi, Bluetooth 5.
8.9 mA transmit current in BT 5 mode, 2 Mbps data rate
Operating temperature: -40°C to +85°C
Transmission distance up to 200M.
FCC, NCC Certification.
