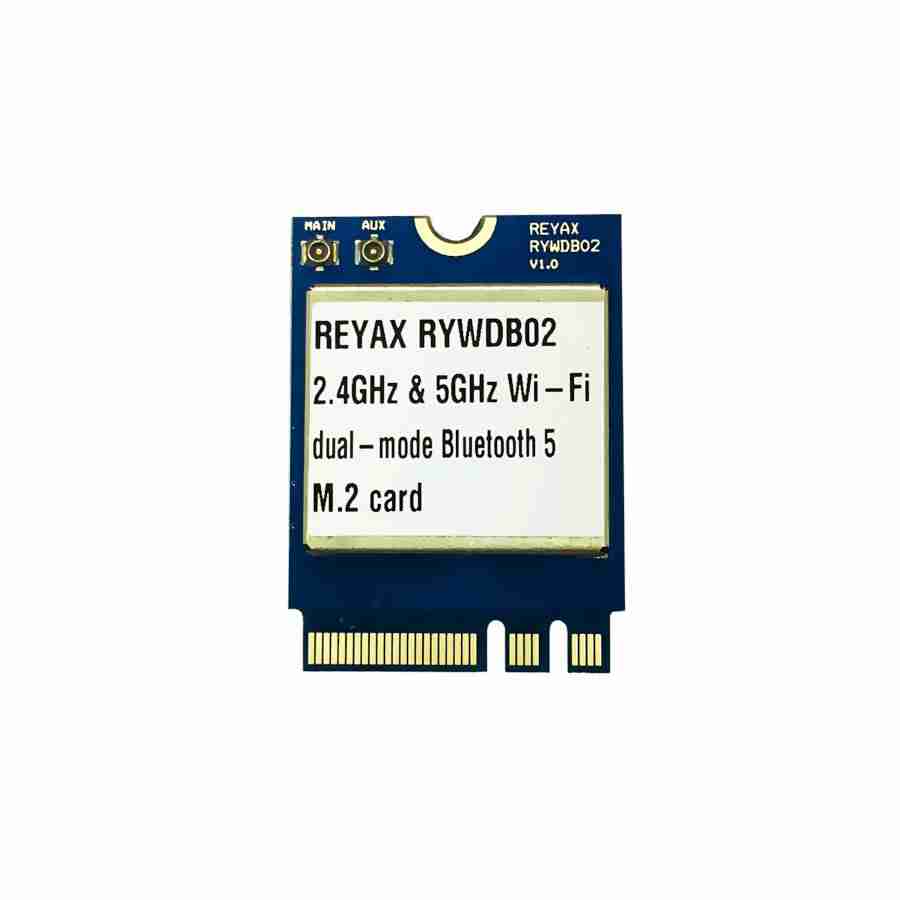

Reyax RYWDB02 Industrial grade WiFi 802.11a/b/g/n 2.4GHz 5GHz and Bluetooth 5 M2 Card

RYWDB02, Industrial grade WiFi and Bluetooth M2 Card. Providing a comprehensive multi-protocol wireless connectivity solution including 802.11 a/b/g/n (2.4 GHz & 5 GHz), 802.11j, dual mode Bluetooth® 5.

Enquire Now

RYWDB02, Industrial grade WiFi and Bluetooth M2 Card. Providing a comprehensive multi-protocol wireless connectivity solution including 802.11 a/b/g/n (2.4 GHz & 5 GHz), 802.11j, dual mode Bluetooth® 5.

RYWDB02, Industrial grade WiFi and Bluetooth M2 Card Features:
Redpine Signals RS9116 Industrial grade core.

WiFi
Compliant to single-spatial stream IEEE 802.11 a/b/g/n, 802.11j (hosted mode) with dual band (2.4 and 5 GHz) support
Support for 20 MHz and 40 MHz channel bandwidths
Transmit power up to +18 dBm with integrated PA
Receive sensitivity as low as -96.5 dBm
Application data throughput up to 100 Mbps (Hosted Mode) in 802.11n with 40 MHz bandwidth and up to 50 Mbps with 20 MHz bandwidth
Standard M.2 2230 KEY A E design.
Temperature range: -40 to +85°C.
M.2 Signal Type USB2.0 HS.

Bluetooth
Compliant to dual-mode Bluetooth 5
Transmit power up to +17 dBm with integrated PA
Receive sensitivity as low as -104 dBm
Data rates: 125 kbps, 500 kbps, 1 Mbps, 2 Mbps, 3 Mbps

A industrial grade WiFi and Bluetooth module is available in a PCIe half mini card format: RYWDB00
