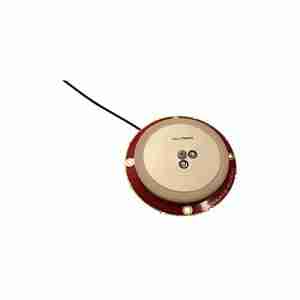

Tallysman TW3872E Dual Band Embedded Prefiltered GNSS Antenna 35dB

TW3872E, a dual band embedded prefiltered GNSS Antenna 35dB, covering GPS, Glonass, Galileo and Beidou Global Navigation Satellite Systems (GNSS).

Tallysman’s TW3872 Coverage:
GPS L1 / L2
GLONASS G1 / G2
Galileo E1
BeiDou B1
SBAS WAAS / EGNOS / MSAS

Enquire Now

Product Documents

Datasheet

TW3872E, a dual band embedded prefiltered GNSS Antenna 35dB, covering GPS, Glonass, Galileo and Beidou Global Navigation Satellite Systems (GNSS).

TW3872E Dual Band Embedded Prefiltered GNSS Antenna 35dB features:
Very low Noise Preamp
Axial ratio: < 2 dB typ.
Tight Phase Center Variation (PCV)
High Gain: 35 dB typ.
Low current: 24 mA typ.
ESD circuit protection: 15 KV
Invariant performance from: +2.5 to 16VDC

Tallysman’s TW3872 Coverage:
GPS L1 / L2
GLONASS G1 / G2
Galileo E1
BeiDou B1
SBAS WAAS / EGNOS / MSAS

Tallysman’s TW3872 benefits from:
Ideal for L1/L2 RTK surveying systems
Great multi-path rejection
Increased system accuracy
Great signal to noise ratio
REACH and RoHS compliant

TW3872E provides excellent circular polarized signal reception, great multi path and out of band signal rejection. As a result TW3872E is ideal for precision positioning and RTK surveying systems.

TW3872E features a precision tuned, circular dual feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide band Low Noise Amplifier, then band-split for narrow filtering in each band and further amplified prior to recombination at the output.

Tallysman‘s TW3872E also includes an LNA pre-filter, providing enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi.

Custom tuning services are available.
