Temperature LoRa Sensor Go-IoT WISKA MINI TH(SHT45) – High Accuracy

£85.00 Each Ex-VAT (EXW)

Go-IoT WISKA MINI Temperature, Humidity and Air Pressure LoRa Sensor – Battery Powered – High Accuracy

Availability: 10 in stock (can be backordered)

Enquire Now
SKU: WISKA-MINI-TH(SHT45)-BAT-WH Categories: , , , , , Tag: Brand:

Product Documents

WISKA MINI TH

Go-IoT WISKA MINI Temperature LoRa Sensor – Battery Powered – High Accuracy

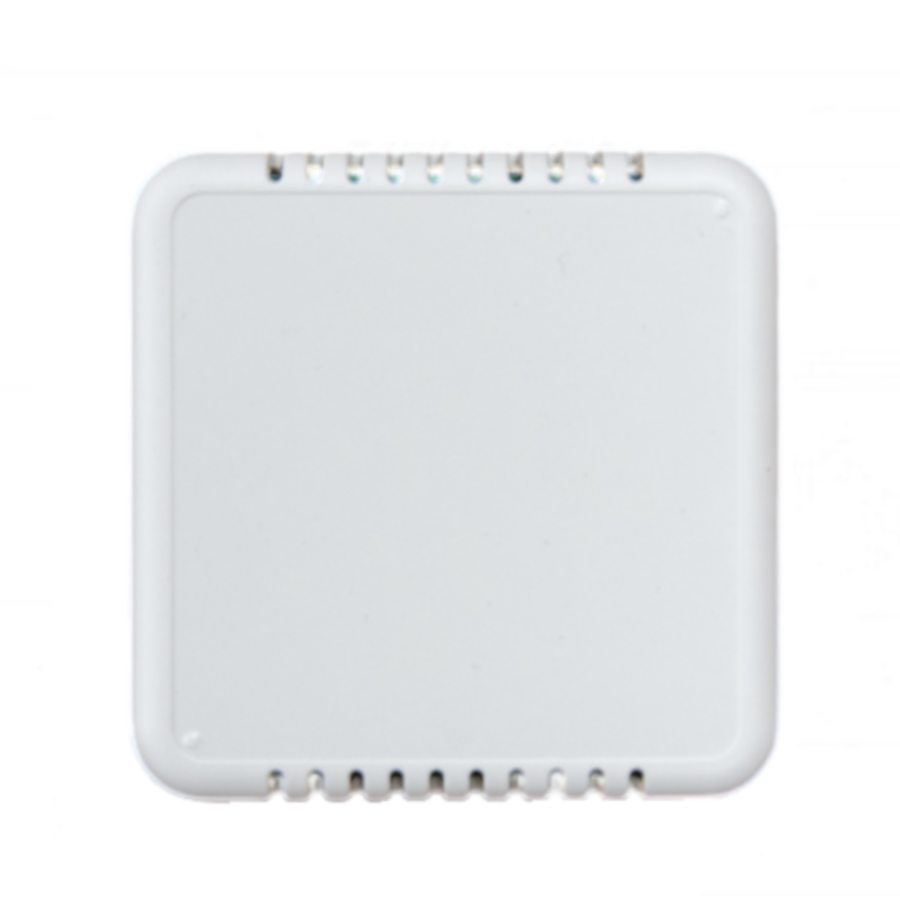

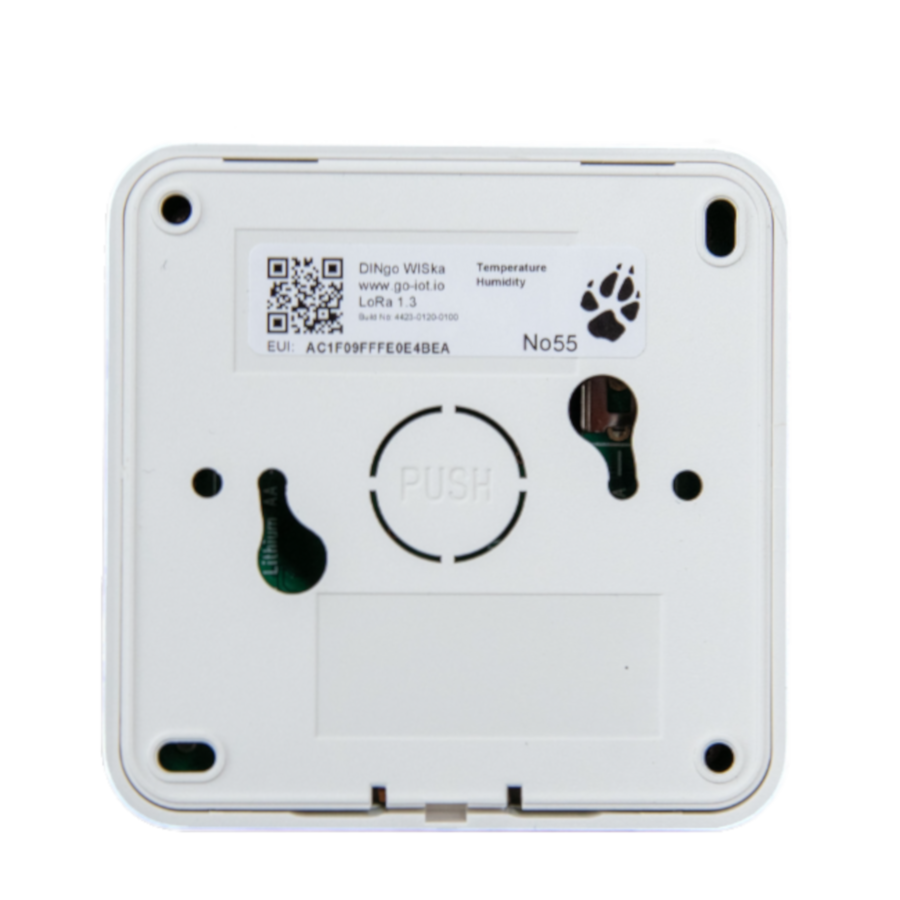

The WISKA MINI Temperature LoRa Sensor incorporates the latest low power technology for monitoring Temperature, Humidity and Air Pressure in a single small 86x86x26mm battery-powered ABS housing. Supplied with a convenient wall mounting bracket for quick and easy fitting on walls. The large capacity 2 x 2,700mAH batteries will provide up to 5 years battery life (dependant on uplink sampling rate – default of which is 30 minutes).

The WISKA supports the LoRaWAN 1.0.3 standard. It is fully configurable via a micro-USB interface (and soon via downlinks if combined with the Go-IoT DINGO range of BACnet LoRaWAN BMS Gateways).

Go-IoT Item Id: WISKA-MINI-TH(SHT45)-BAT-WH
Wireless Technology – LoRaWAN® 1.0.3
Wireless Security – LoRaWAN® End-to-End encryption (AES-CTR), Data Integrity Protection (AES-CMAC)
LoRaWAN Device Type – Class A/C (configurable) End-device. (Class B is optional)
Supported LoRaWAN® features – OTAA, ABP, ADR, Adaptive Channel Setup
Supported LoRaWAN® regions EU433, CN470, IN865, EU868 (standard), AU915, US915, KR920, AS923 (Other Regions are optional)
Link Budget – 131 dB (SF5) to 151 dB (SF12)
RF Transmit Power – 14 dB / 22 dB (Region specific)
Antenna – Internal (standard) or External (option)
Battery Type 2 x AA Size Lithium Battery ER14500/14505 2700mAh Li-SOCL₂ non-rechargeable 3.6 Volt
Battery Life – Up to 5 years (30mins reporting @ SF7)
Other PSU options – please enquire
Sensors:-
Temperature – Resolution: +/-0.1 °C – Accuracy: +/- 0.1 °C (2-60 °C)
Humidity – Resolution: 1 % RH – Accuracy: +/- 1 % RH (15-55 °C)
Air Pressure – Range: 260 – 1260 hPa – Accuracy +/- 1 hPa
Battery Status – Range: 2.4VDC – 5.0VDC

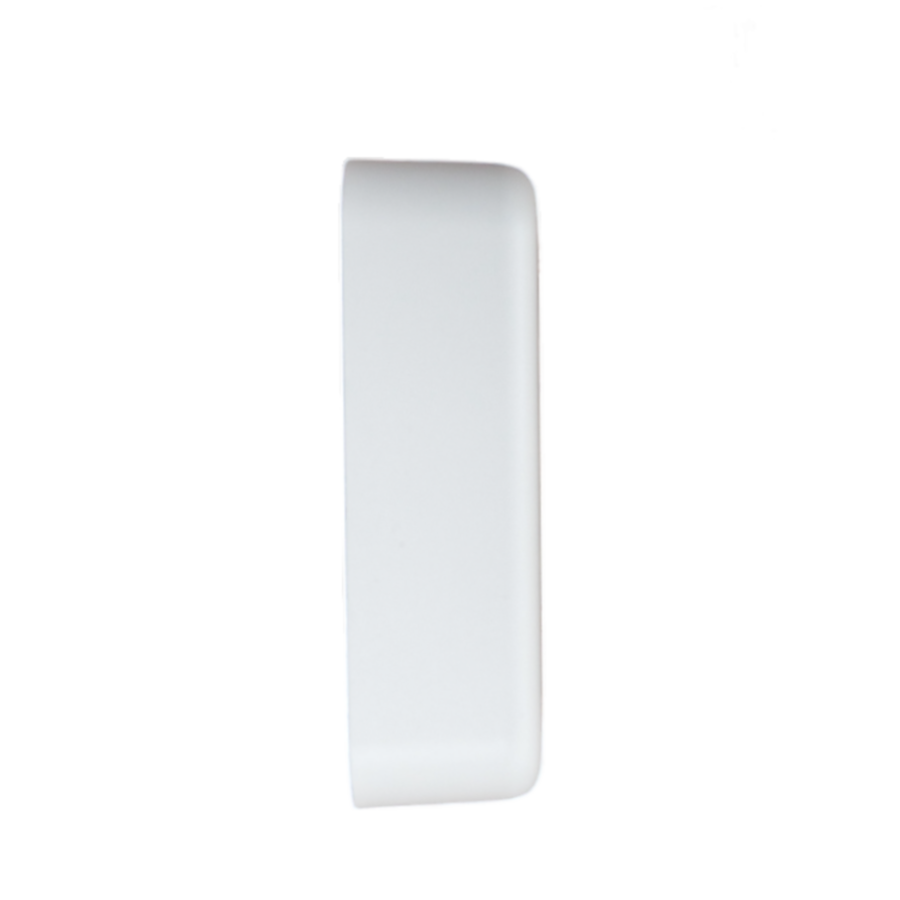

Case Style Edge – 86 x 86 x 26 mm (including wall mount bracket)
Case Colour – ABS – White (standard) , Grey, Black

For full data and more information regarding options please see the datasheet or use the contact form to enquire.
