The TW3972 employs Tallysman’s unique Accutenna® technology, covering GPS/QZSS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b, BeiDou B1/B2, SBAS (WAAS/EGNOS/GAGAN/MSAS), and L-band correction services.
- Very low Noise Preamp, < 2.5dB
- Axial ratio: <2dB typ.
- Tight Phase Center Variation
- LNA Gain 37 dB typ.
- Low current: 24 mA typ.
- ESD circuit protection: 15 KV
- Invariant performance from: +2.5 to 16VDC
- Ideal for triple band RTK surveying systems
- Great multipath rejection
- Increased system accuracy
- Great signal to noise ratio
- IP67, IP69K, REACH, and RoHS compliant
Ideal for precision agriculture, autonomous vehicle tracking and guidance, and other applications where precision matters, the TW3972 provides superior multi-path signal rejection, a linear phase response, excellent axial ratios, and tight Phase Centre Variation (PCV).
The TW3972 features a precision tuned, twin circular dual feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output.
Providing enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi, the TW3972 also includes an LNA pre-filter.

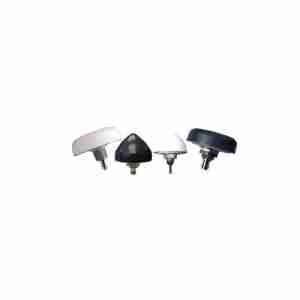

The TW3972 is housed in a through-hole mount, weather-proof enclosure for permanent installations. An L Bracket or Pipe Mount are available for non-rooftop installation. A 100mm ground plane is included and recommended for all installations.
