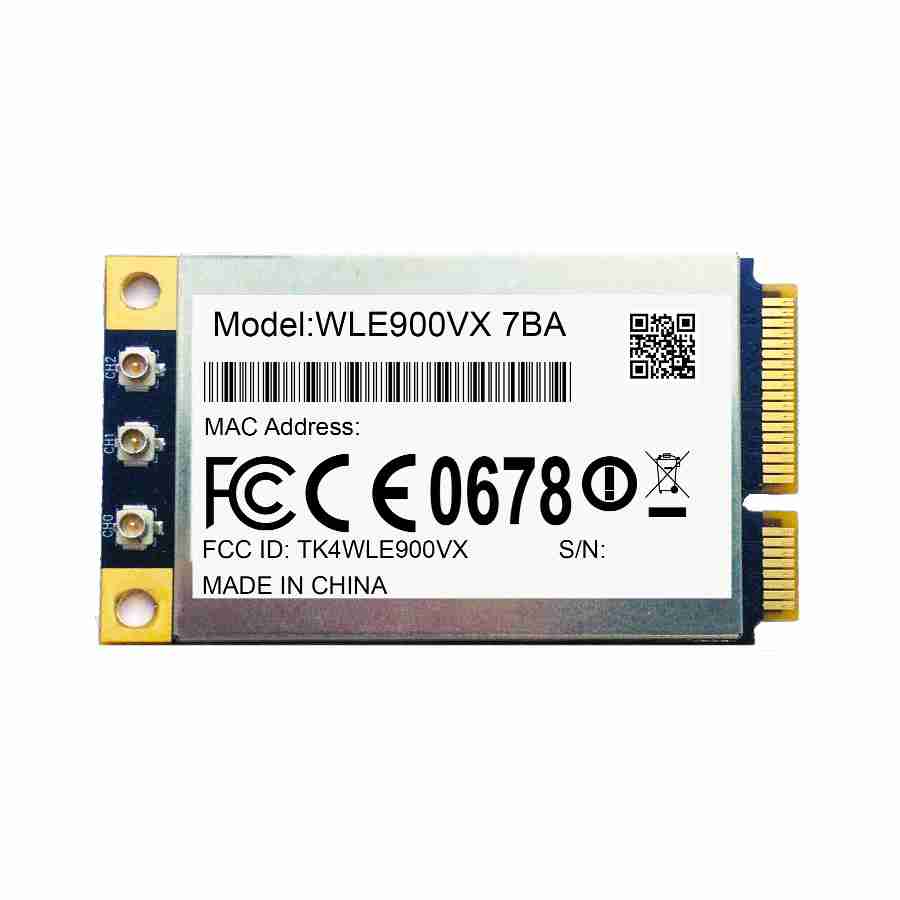

WLE900VX Dual Band 3×3 MIMO 802.11ac Wave 1 Industrial Grade Module

Description

Dual Band 3×3 MIMO 802.11ac Wave 1 Industrial Grade Module

• Qualcomm Atheros QCA9890 • XB140 Reference Design
• 2.4GHz max 21dBm & 5GHz max 20dBm output power (per chain)
• IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
• 3×3 MIMO Technology, up to 1.3Gbps • Mini PCI Express edge connector
• Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
• Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards
• Supports Dynamic Frequency Selection (DFS)
• Cards are individually calibrated for Quality Assurance
• Supported by either CompexWRT with Atheros Reference Wireless Driver OR OpenWRT with ath10k Wireless Driver on WPJ344
