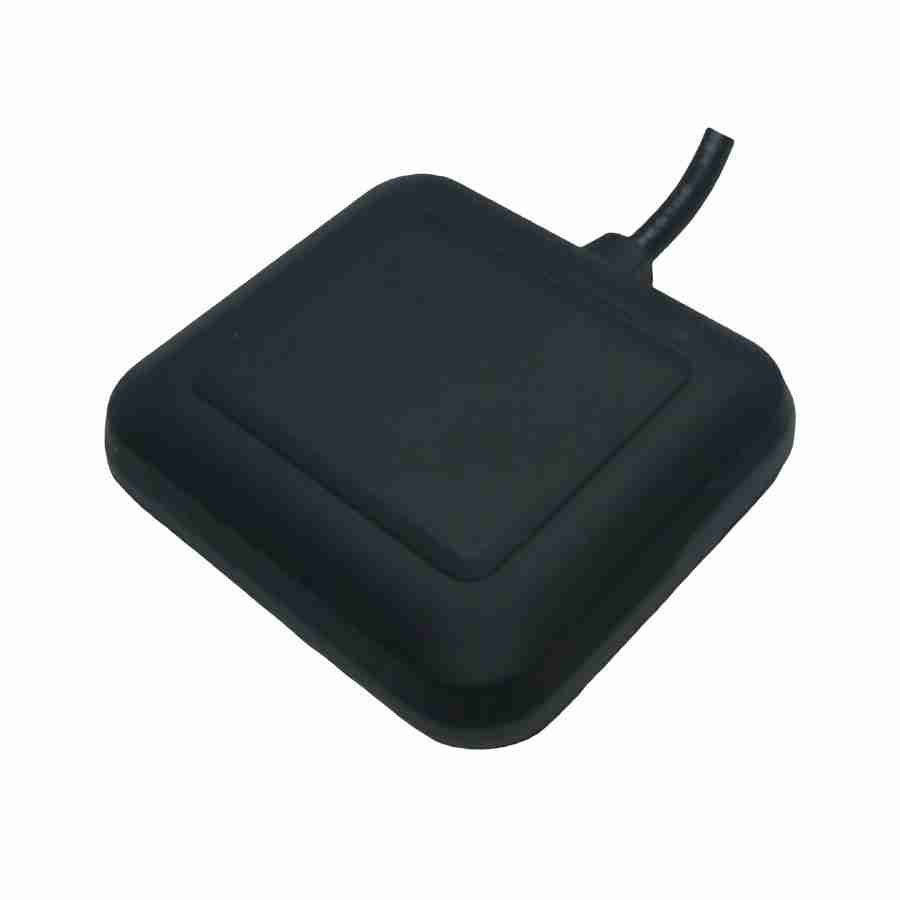

YIC G-MOUSE-903 series ublox GPS GLONASS Receivers

The YIC G-MOUSE-903 series are ublox GPS GLONASS Receivers.

In this case they use the u-blox UBX-M8030, as a result they are able to track up to 72 channels. In addition to this they also provide a fast time to first fix.

Furthermore these antennas are compact, high performance and low power.

SKU: YIC-G-MOUSE-903F-GPS-GLN Categories: , Brand:
Enquire Now

Product Documents

The YIC G-MOUSE-903 series are ublox GPS GLONASS Receivers.

In this case they use the u-blox UBX-M8030, as a result they are able to track up to 72 channels. In addition to this they also provide a fast time to first fix.

Furthermore these antennas are compact, high performance and low power.

The YIC G-MOUSE-903 series of GPS GLONASS Receivers have many features, in particular:
GNSS Chipset: u-blox UBX-M8030
Frequency: GPS, QZSS, GLONASS, SBAS
Channels: 72 channels
Input Voltage: 3.0 to 5.5V
Interface: UART/TTL, RS232 or USB
Memory Available: Flash

In addition to this, the are easy to install.

The following YIC G-MOUSE-903 series models are available:

Model Dimension Internal Memory VCC (V) Additional LNA/SAW PPS LED Display GNSS Chip Mount
GR-903GG 55 x 46 x 14.5 mm FLASH 3.3 / 5 ublox M8 Adhesive
GR-903MGG 55 x 46 x 14.5 mm FLASH 3.3 / 5 ublox M8 Magnetic
GT-903GG 55 x 46 x 14.5 mm FLASH 3.3 / 5 ublox M8 Adhesive
GT-903MGG 55 x 46 x 14.5 mm FLASH 3.3 / 5 ublox M8 Magnetic
GU-903GG 55 x 46 x 14.5 mm FLASH 5 ublox M8 Adhesive
GU-903MGG 55 x 46 x 14.5 mm FLASH 5 ublox M8 Magnetic
