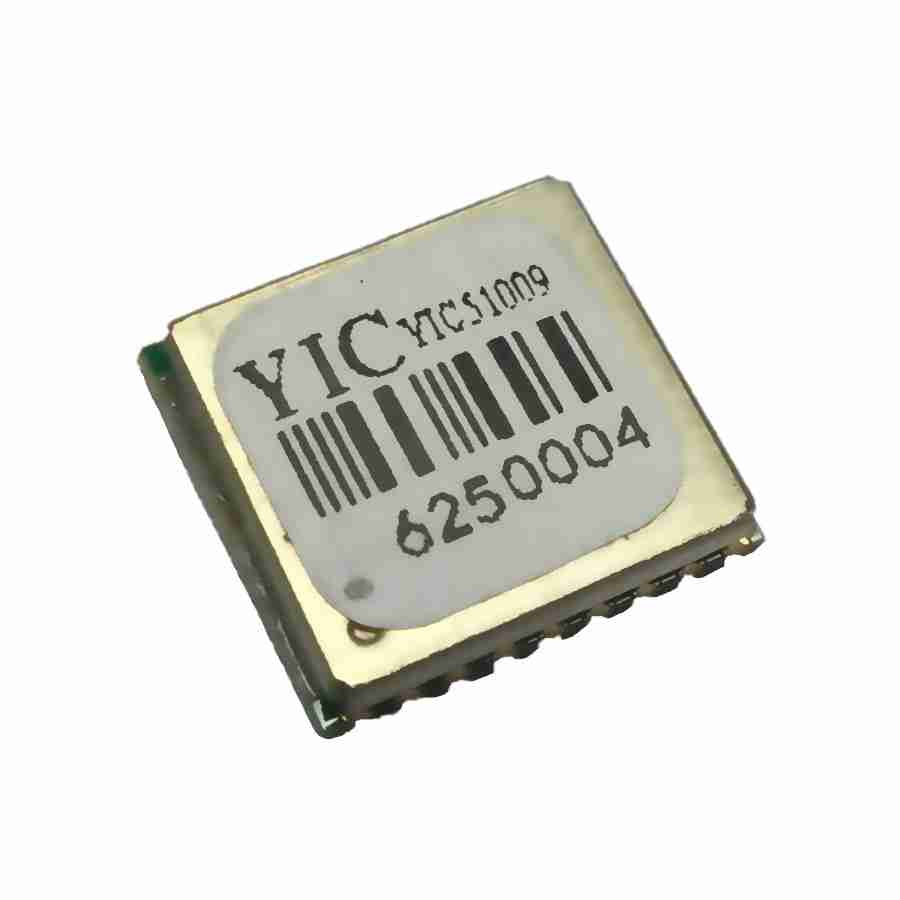

YIC51009EB MediaTek MT3337 GPS Receiver Module, Low Power

Brands:

The YIC51009EB is a GNSS/GPS Receiver Module powered by a MediaTek MT3337 (ROM) Chip, designed to be low power.

The YIC51009EB supports 66 channels.

Product Documents

Categories: , Brands:

Description

The YIC51009EB is a GNSS/GPS Receiver Module powered by a MediaTek MT3337 (ROM) Chip, designed to be low power.

The YIC51009EB supports 66 channels.

The YIC51009EB provides a fast time to first fix (1s Hot Start / 32s Cold Start)

The YIC51009EB MediaTek MT3337 GPS Receiver Module, Low Power Features:

MediaTek high sensitivity solution
Support 66-channel GPS
Ultra low power consumption
Fast TTFF at low signal level
Built-in 12 multi-tone active interference canceller
Free hybrid ephemeris prediction to achieve faster cold start
Built-in data logger
Built-in DC/DC converter to save power
Up to 10 Hz update rate
±11ns high accuracy time pulse (1PPS)
Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)
Support Japan QZSS
Indoor and outdoor multi-path detection and compensation
Small form factor 10.1 * 9.7 * 2.5mm ±0.2mm
SMD type with stamp holes
RoHS compliant
