Emlid’s RTK GPS Receivers provide an accurate, reliable position for any application where a position is required.
Emlid Industry Sectors
Emlid’s RTK GPS GNSS Receiver products are born out of a need to supply good affordable, good quality, reliable surveying equipment to the surveying industry.
In addition to the mining industry, Emlids products are perfect for other industries where cm accurate positioning is essential.
These industries include:
Construction
Ideal for Asset Tracking, Estimating, Machinery Guidance, Setting Out and Safety
Mining
Ideal for Asset Tracking, Drilling, Machinery Guidance, Setting Out and Safety
Agriculture
Reduce costs by making tasks around farms in-house and more efficient
Surveying
Affordable Drone, Site and Topographical Surveys as well as Geopositioning. CM Accuracy

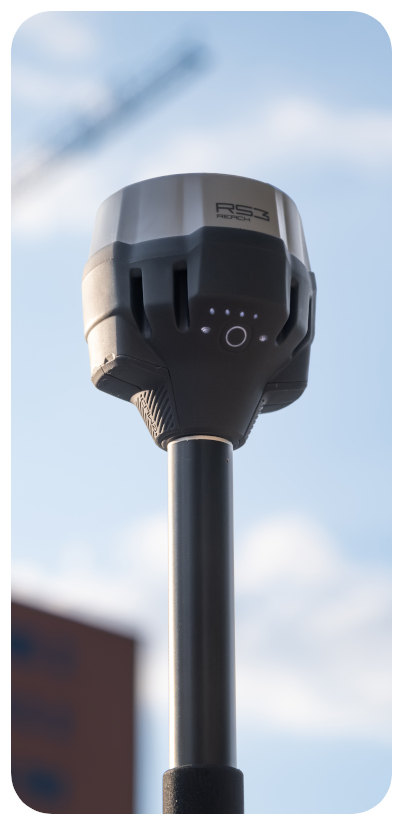

Construction
Asset Tracking
Emlid Reach M2 can be installed within an asset to provide a position, while also providing a location of the asset to the controller via a third-party compatible device. Emlid’s Reach RS2+ can also be used for providing a position stream to a piece of equipment.
Estimating
Emlid's Reach RS2+ or RS3 RTK GPS GNSS Receivers are capable of collecting data on a site which can be used to create a site map / plan to aid with the estimation of work and materials required.
Machinery Guidance
As a result of careful estimation, forecasting and project planning data can be provided to guide the position of each machine at all stages of production.
Setting Out
Emlid’s Reach RX or Reach RS2+ with their hand-held GPS / GNSS surveying capability provide a builder with the ability to accurately, cost effectively and easily stake out the location of points within and around the structure.
Safety
Emlid's Reach M2 Module and Reach RS2+ or RS3 RTK GPS GNSS Receivers enable drone surveying on construction sites. Removing the risk to surveyors from being around heavy site equipment or the cost of downtime while surveys are carried out.

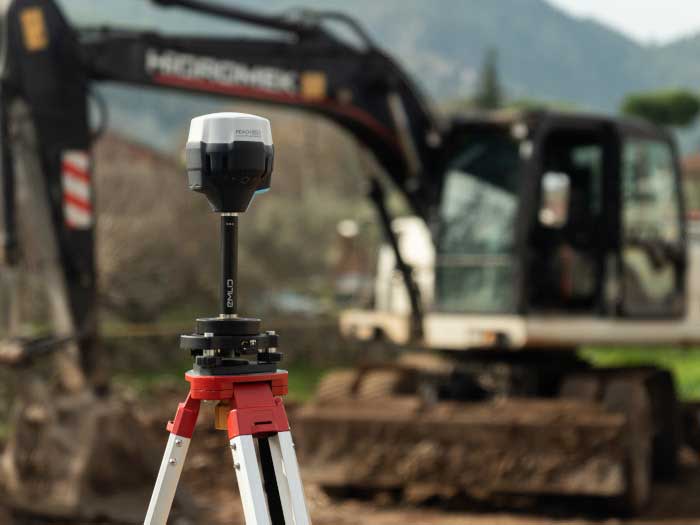

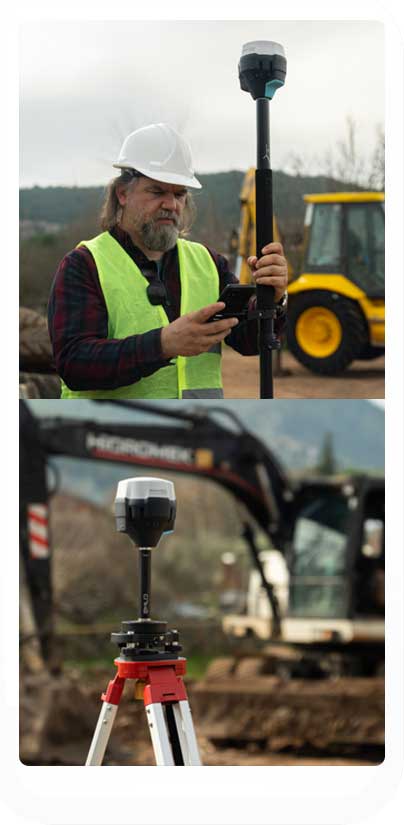

Mining
Asset Tracking
Emlid Reach M2 can be installed within an asset to provide a position, while also providing a location of the asset to the controller via a third-party compatible device. Emlid’s Reach RS2+ can also be used for providing a position stream to a piece of equipment.
Cost Saving
Emlid's Reach RS2+ or Reach RS3 with their RTK GPS GNSS receivers capability makes taking an accurate position for each drill hole easy. A drill map showing the position and results of each drill hole can then be plotted onto a plan of the mine. A reading taken using the Reach RS2+ or Reach RS3 in RTK mode will result in a particular drill hole being re-located (Staked Out) to within centimetres. A mine boss can then make an educated decision on where to open the next cut based on the return on investment.
Safety
Emlid's Reach M2 Module and Reach RS2+ or RS3 RTK GPS GNSS Receivers enable drone surveying on mining sites. Removing the risk to surveyors from being around heavy site equipment or the cost of downtime while surveys are carried out.

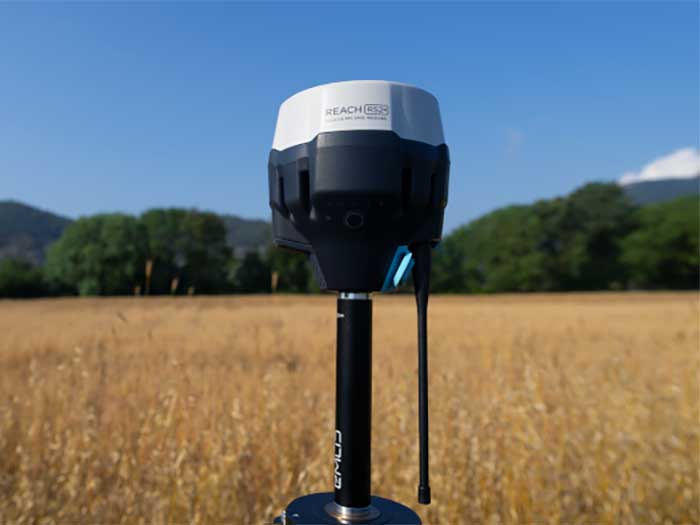

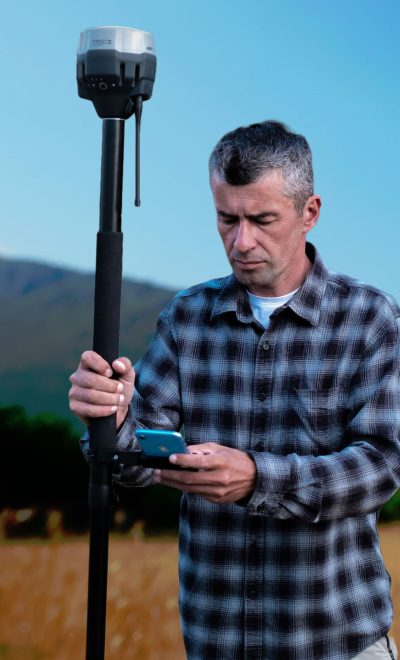

Farming with Emlid
Emlid provides high-precision GNSS (Global Navigation Satellite System) receivers, such as the Reach series, which enable farmers to accurately monitor and manage their fields, crops, and livestock using real-time data and automation, improving efficiency, yield, and decision-making.
Accurate Field Mapping
With centimeter-level accuracy, Reach RS3 enables farmers to map field boundaries to optimise tractor routes, reduce fuel consumption, and minimise soil compaction. This leads to more efficient and sustainable farming practices. In addition to this by accurately mapping field boundaries, crop rows, and other features, farmers can make data-driven decisions about crop planning, irrigation, and harvesting, leading to improved yields and reduced waste.
Drains / Drainage
Emlid’s Reach RS3 RTKGPS GNSS receivers can be utilised to record the location of newly installed or lost field drains with high accuracy, within a few centimeters. This capability is particularly useful in situations where drains have been blocked or obstructed, making it essential to determine their precise location. In such cases, Emlid’s Reach RS3 receivers can be employed to “stake out” the location of the drains, providing a reliable and accurate method for farmers to identify the exact position of the affected drains. This information is crucial for effective maintenance, repair, or replacement of the drains, ensuring minimal disruption.
Soil Sampling
By mapping soil types, moisture levels, and nutrient content, farmers can optimise fertiliser and chemical applications, reducing waste and environmental impact. Emlid’s Reach RS3, a high-precision GNSS receiver, plays a crucial role in this process.
Machinery Guidance and Automation
Emlid’s Reach RS3 RTK receivers can provide a position output to compatible equipment. These include: NMEA Output: The Reach RS3 can output position data in NMEA (National Marine Electronics Association) format, which is a widely accepted standard for GPS and GNSS data. LLH/XYZ Coordinates: The receiver can provide position data in LLH (Latitude, Longitude, Height) or XYZ (Cartesian) coordinates, allowing compatible equipment to utilize this information.

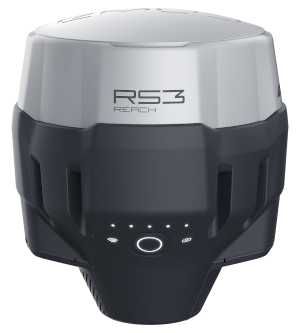

Reach RS3
Multi-band RTK GNSS receiver with tilt compensation. Survey grade precision even in hard-to-reach spots. Comes with a mobile app. £2249.17 + VAT
Pix4D Emlid Scanning Kit
Suitable for various industries such as; construction, infrastructure, surveying, mining, forestry, agriculture, environmental monitoring and urban planning. £3325 + VAT

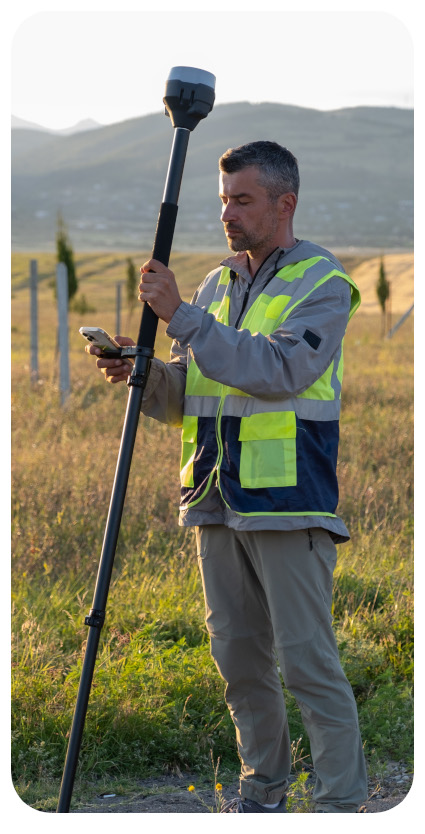

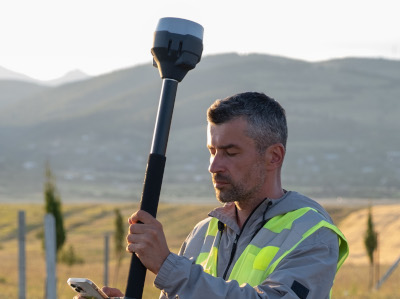

Surveying
Affordable
Emlid's Reach RS3 or Reach RS2+ RTK GPS GNSS receivers provide a surveyor with a cost effective cm accurate durveying solution, which they own, from £2399 GBP.
Compatible
Emlid's Reach RS3 and RS2+ RTK GPS GNSS Receivers are designed to be used with apple / android phones and tablets. Illiminating the need for a specialist piece of hardware. In addition to this Reach RS3 and RS2+ provide a position output in NMEA, LLH and XYZ to third party compatible devices.
Safety
Emlid's Reach M2 Module and Reach RS2+ or RS3 RTK GPS GNSS Receivers enable drone surveying in potentially unsafe areas. Removing the risk to surveyors.
Key Features
IMU
6DOF, RTK + 2 mm + 0.3 mm/°
18 hrs with tilt compensation
Li-Ion battery, USB Type-C charging
Dual-band radio
868/915 MHz LoRa to receive and transmit corrections
450 MHz UHF to receive corrections
GNSS
GPS/QZSS, GLONASS L1, L2; BeiDou B1, B2; Galileo E1, E5
LTE and Wi-Fi
To connect the device to the internet
NTRIP and RTCM3
Supported protocols to send and receive corrections
Pix4D Emlid Scanning Kit Solution
High-precision 3D Models in Minutes
Pix4D Emlid Scanning Kit Solution is a cutting-edge technology that combines advanced photogrammetry with RTK precision, enabling users to capture precise digital models in minutes. Pix4D and Emlid Users are already benefiting from: Reduced Surveying Costs Increased Productivity Improved Data Accuracy Enhanced Data Quality Cost Effective Maintainance
How it Works
- Capture Images: Use the Pix4Dcatch app to capture images using your smartphone camera and LiDAR.
- Geotag Images: The Reach RX provides real-time positioning via NTRIP, allowing you to geotag your images with centimeter accuracy.
- Process Data: Upload your images to PIX4Dcloud or import them to the PIX4Dmatic desktop app using the PIX4Dcatch processing template.
- Merge Data: Merge terrestrial and drone data to create a comprehensive digital model.
Reach RS3
Multi-band RTK GNSS receiver with tilt compensation. Survey grade precision even in hard-to-reach spots. Comes with a mobile app.
£2699
Pix4D Emlid Scanning Kit
Suitable for various industries such as; construction, infrastructure, surveying, mining, forestry, agriculture, environmental monitoring and urban planning.
