Description

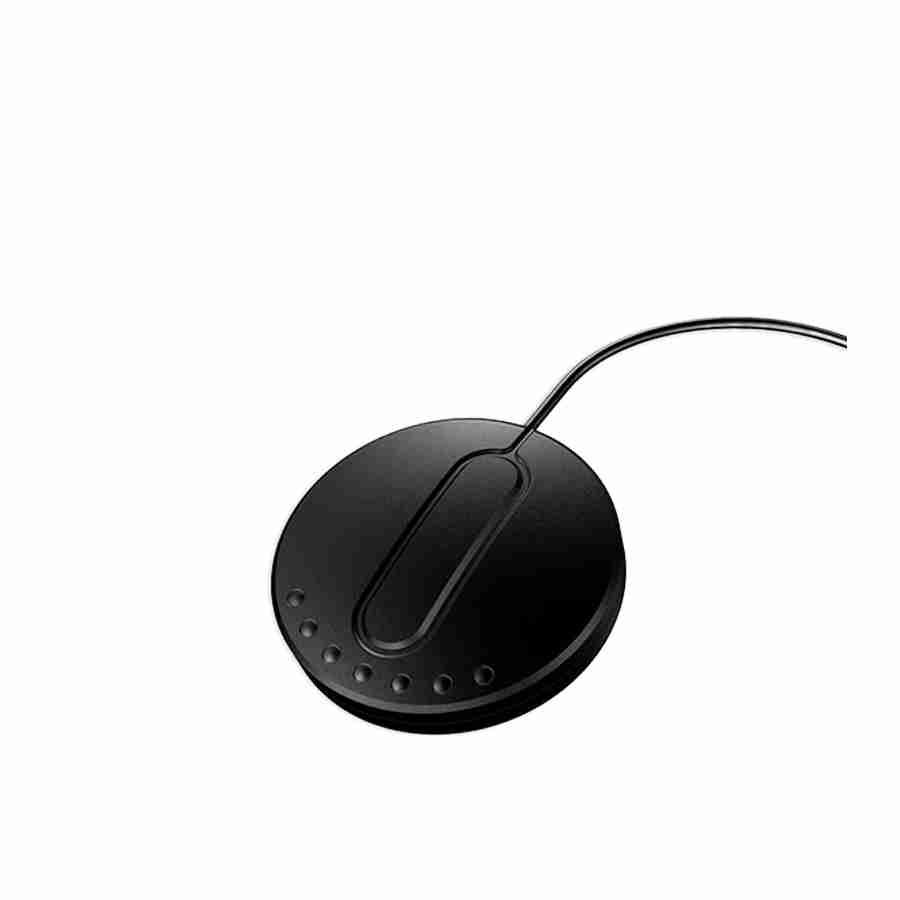

The Maxtena MEA-4-GGC GPS/GLONASS & 2G/3G cellular solution is a high performance antenna in one compact and secure housing.
The Maxtena MEA-4-GGC covers GPS/GLONASS (1575-1610 MHz) and 2G & 3g Cellular (824-894 MHz), & (1850-1990 MHz).
The low-profile Maxtena MEA-4-GGC is a magnetic mount with rugged ABC plastic housing and is ideal for the most demanding environment challenges.
The standard MEA-4-GGC comes with 1 meters RG174 cable and SMA connectors for both GPS/GLONASS and cellular cables.
Cable and connectors are customizable upon request.
The MEA-4-GGC provides outstanding performance for any telematics, remote monitoring, and fleet management application.
The MEA-4-GGC GPS/GLONASS & 2G 3G Features:
Covers the following bands: GSM/GPRS/CDMA/PCS/DCS/WCDMA/UMTS/HSPA/ GPS/ GLONAS
Low profile antenna for easy installation
High LNA Gain
Low noise figure
Ultra-low power consumption
IP65 water resistant
Customizable cable length
Customizable connector
Foam Adhesive or Magnet
ROHS Compliant
