The DINGO M-Bus BACnet Gateway : M-Bus to BACnet® Advanced Gateway provides a powerful, easy to configure solution for transforming every M-Bus device into virtual BACnet device using communication devices based on the M-Bus standard, including supporting trend-logging and edge-gateway to the Cloud.
Allowing up to 60 M-Bus end node loads the DINGO M-Bus Gateway represents a quantum leap in data logging technology.
Together with secure end-to-end encryption and robust transmission technology ensure the highest level of data integrity.
The powerful DINGO Stack software enables easy configuration without the need for lengthy and complex on-site engineer time. In addition it allows easy integration with other BACnet/IP® devices on the network from any vendor.
The DINGO has two Ethernet Ports as standard for backhaul to a network or cloud server.
Many M-Bus devices are already supported in the DINGO Stack library. However, others can be added easily. In addition, device parameters like operating-status can optionally be mapped to BACnet® objects for local or remote logging / surveillance.
This version of the DINGO can have MBUS 5 or 60 loads – selectable via the dropdown options. For other protocols / interfaces please enquire.
The Wireless MBUS Option is currently unavailable. For availability please enquire.
Two power supply options are available – internal 90-240V AC or 10-24V DC – selectable via the dropdown options. Note for MBUS 60 load the DC supply must be 24V.
For LoRaWAN® or combined LoRaWAN®, M-Bus, Modbus RTU (RS485) solutions then please see the DINGO LoRaWAN® BACnet® Advanced Gateway / Server (3-Station) here.
Key Benefits
- Powerful DINGO Stack software running on quad-core ARM processor.
- Full BACnet/IP® and BACnet/WS® standard support.
- Fast and cost-effective deployment.
- Secure end-to-end encryption and robust transmission technology.
- Modular hardware with many expansion options including Analog IO, Digital IO, RS485(Modbus RTU) and MBUS plug-ins.
- Co-reside with Modbus/RTU, MBUS, Wireless MBUS and more, using DINGO hardware plug-ins. All mapped to virtual BACnet devices or objects.
Application examples
- BMS Building / Campus Management Systems.
- Smart Agriculture
- Large scale / metropolitan data logging and control.
- Office / Workplace Environmental Monitoring.
- Environment Monitoring (flooding etc.).
- Street Lighting control
- Car Parking Systems
- Traffic Monitoring & Management
- Waste Management
Ordering Guide

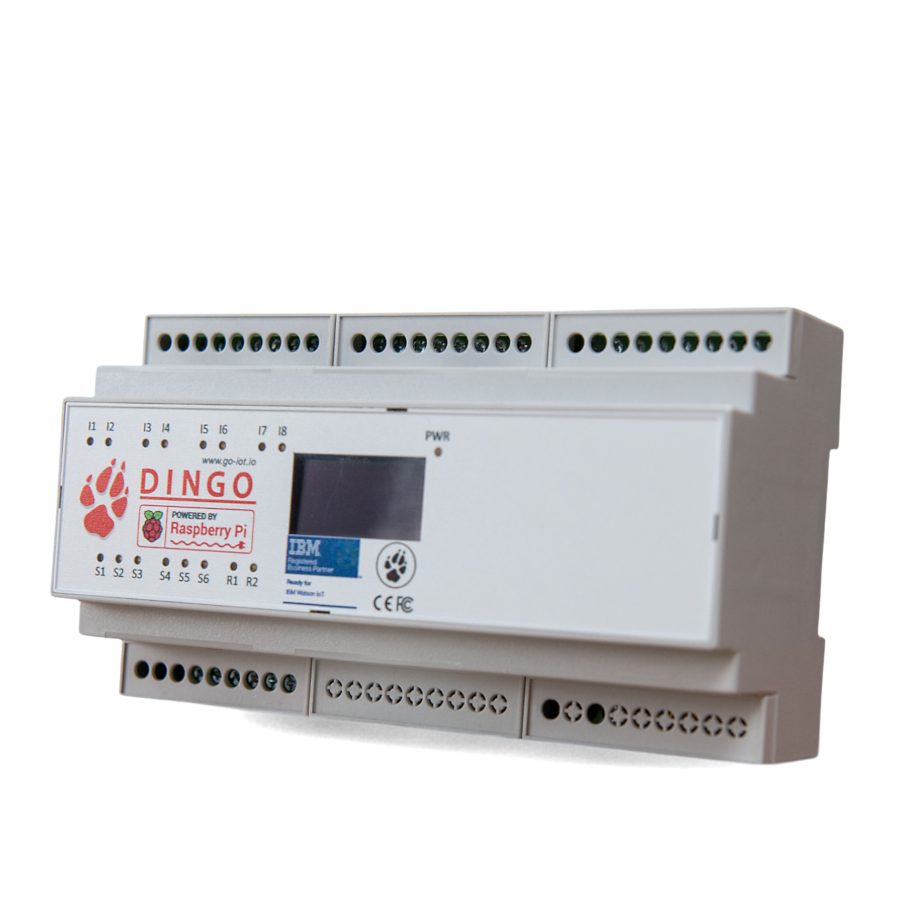

This version of the DINGO M-Bus BACnet® Gateway comes in a 3- Station DIN Housing with 1 optional Plug-in position. However, other versions are available, the NEW compact low-cost DINGO-Lite range and a 4- Station DIN option (which allows additional functionality via multiple DINGO Plug-ins for MBUS, Wireless MBUS, Opto-Isolated RS485, etc). Please enquire or see our ordering guide in the product documents section for more information.
The standard DINGO M-Bus BACnet Gateway is powered by 90-240V AC Mains power source. Alternatively it can be ordered with a 10-24V DC 1.5A input option (90-260V AC External Power Supply and Power lead supplied).
As standard the DINGO M-Bus BACnet Gateway ships with a 1 year license for the DINGO Stack Base Engine and 100 Internal BACnet® objects (each node typically will require 6-18 objects – see the ordering guide for more information here). In addition it includes access to the remote DINGO Manager control and configuration dashboard plus 1 hour of remote support for your first purchase. It also includes 1 year ‘Bronze’ maintenance (software updates only). Other contracts for ongoing updates, support and configuration are available – please enquire.
BACnet® is a trademark of ASHRAE
LoRaWAN® is a trademark of the LoRa Alliance
