Description

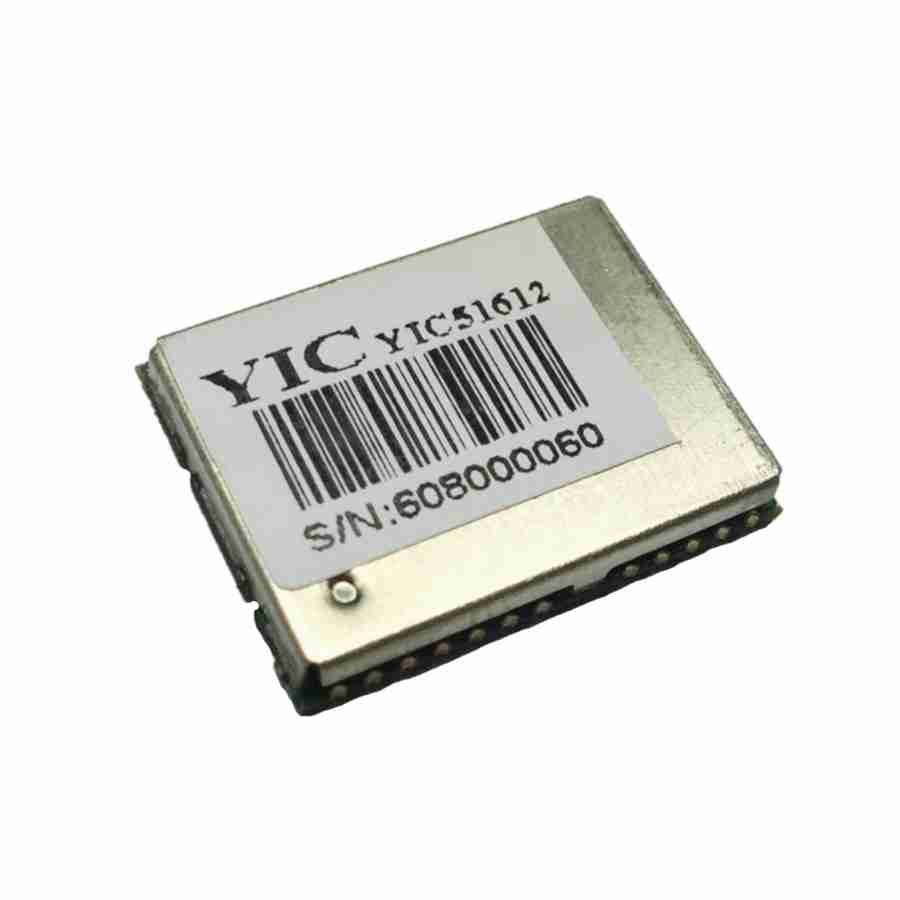

The YIC51612EB is a GNSS/GPS Receiver Module which uses a MediaTek MT3339 (ROM) Chip, designed to be low power and ultra small form factor.
The YIC51612EB supports 66 channels.
The YIC51612EB provides a fast time to first fix (1s Hot Start / 32s Cold Start)
The YIC51612EB is 16.0 x 12.2 x 2.2mm
The YIC51612EB MediaTek MT3339 Powered GPS Receiver Module Low Power, Small Size Features:
MediaTek high sensitivity solution
Support 66-channel GPS
Ultra low power consumption
Fast TTFF at low signal level
Built-in 12 multi-tone active interference canceller
Free hybrid ephemeris prediction to achieve faster cold start
Built-in data logger
Built-in DC/DC converter to save power
Up to 10 Hz update rate
±11ns high accuracy time pulse (1PPS)
Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)
Support Japan QZSS
Indoor and outdoor multi-path detection and compensation
Small form factor 16.0 * 12.2 * 2.2 mm
SMD type with stamp holes
RoHS compliant
